Made to Order
Dayus / Supply Blade Registers

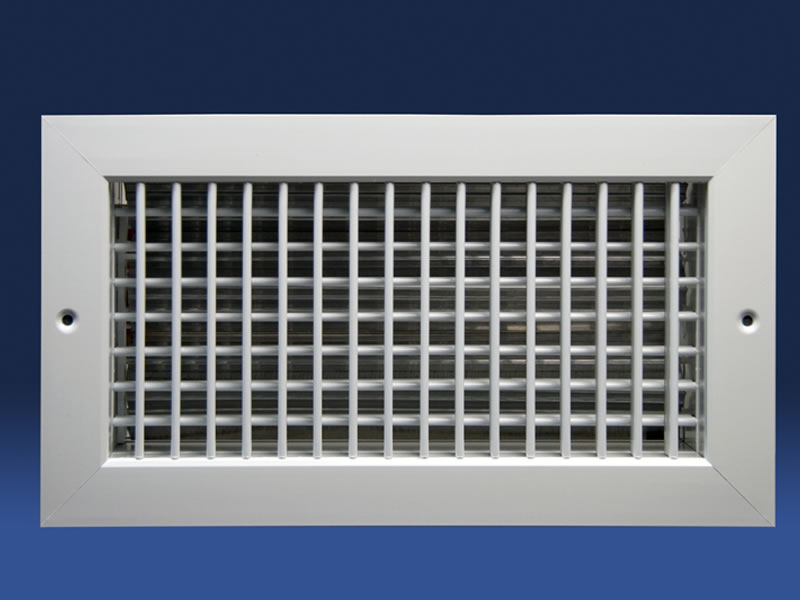

DAVHD Double Deflection Supply Register With Vertical Front Blades And Horizontal Back Blades And OBD Damper

mill
silver
white
adjustable damper
horizontal blade
louver blades
vertical blade
ceiling
supply
wall
aluminum
rectangle

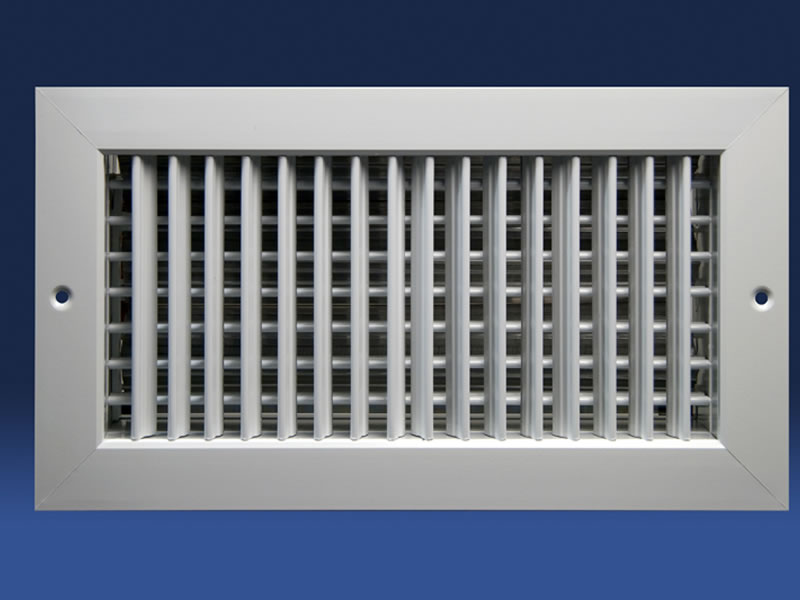

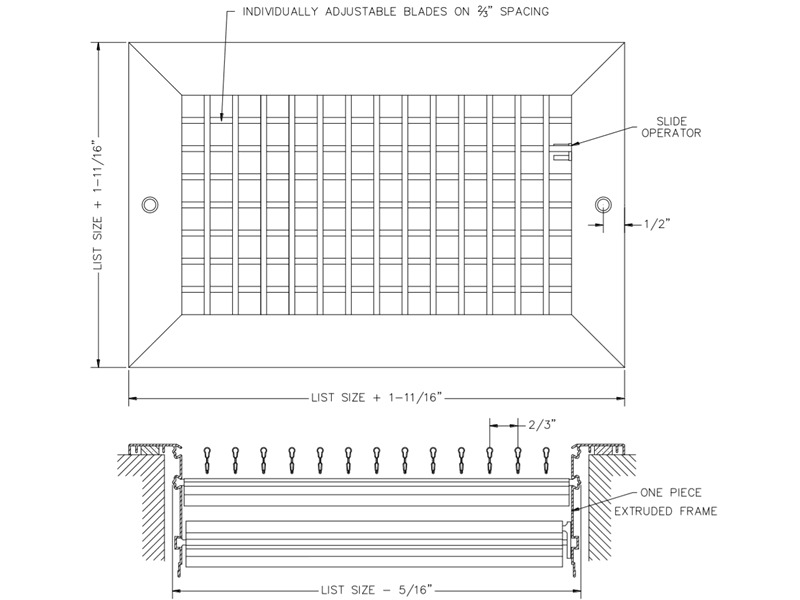

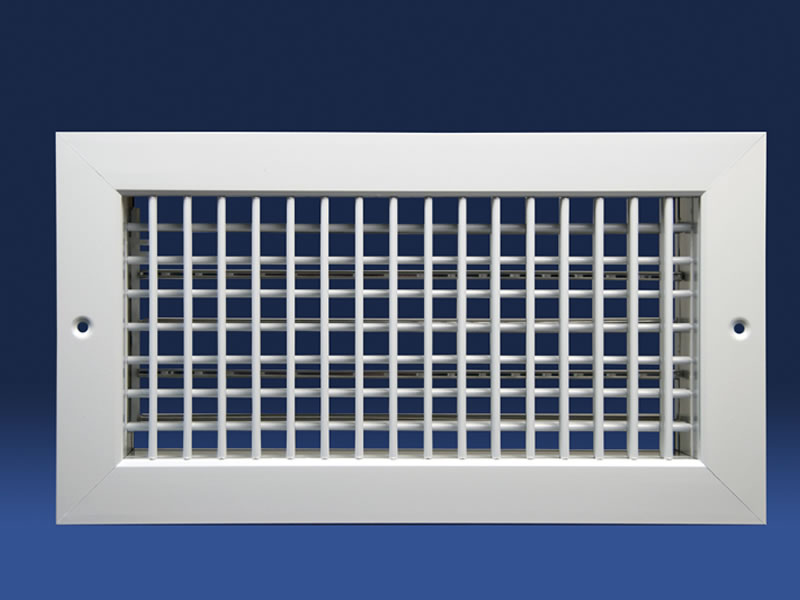

· Vertical blades in the front, Horizontal blades in the back, both individually adjustable and on 2/3” spacing
· Opposed Blade Damper with slide operator
· Aluminum rollformed blade with semi-airfoil design
· Pressure fit nylon pivot pins (rattle free & non loosening)
· Countersunk screwholes c/w painted mounting screws

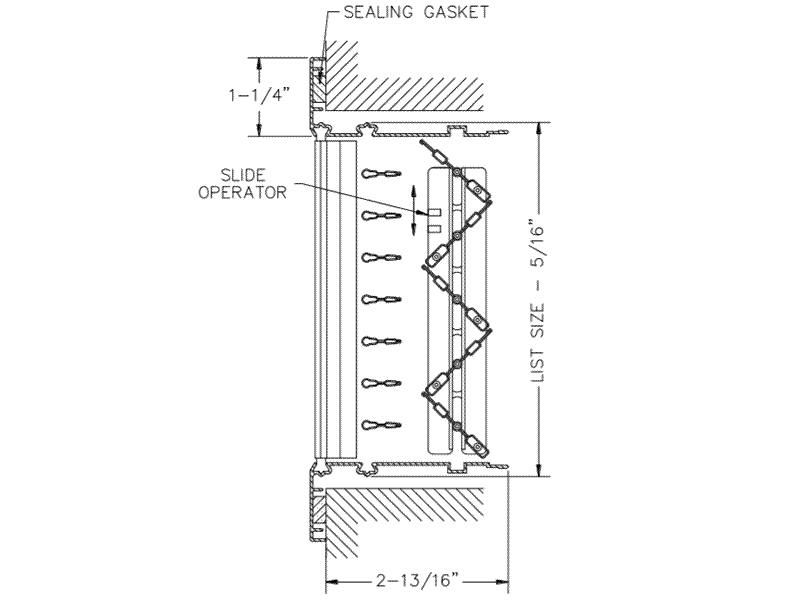

· Sealing gasket to prevent streaking on walls or ceiling

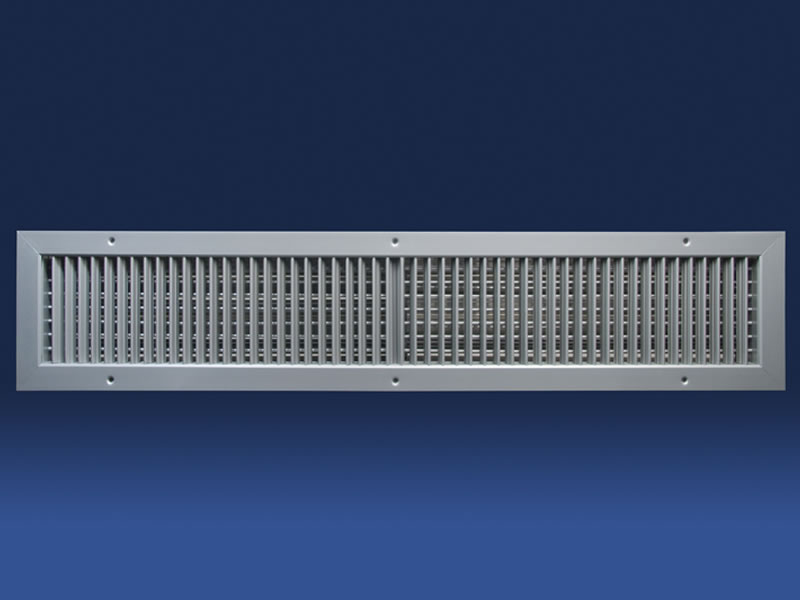

· Max blade length is 18”. Mullions used for larger sizes

Dayus products are made-to-order. They are NON-RETURNABLE.  The minimum Dayus order amount is $45 which will be reflected in the basket.  List dimensions are the hole measurements. Dayus grilles are undercut to fit inside the hole.

Friday Next Production means the order will ship not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday.
