Made to Order
Dayus / Supply Blade Registers

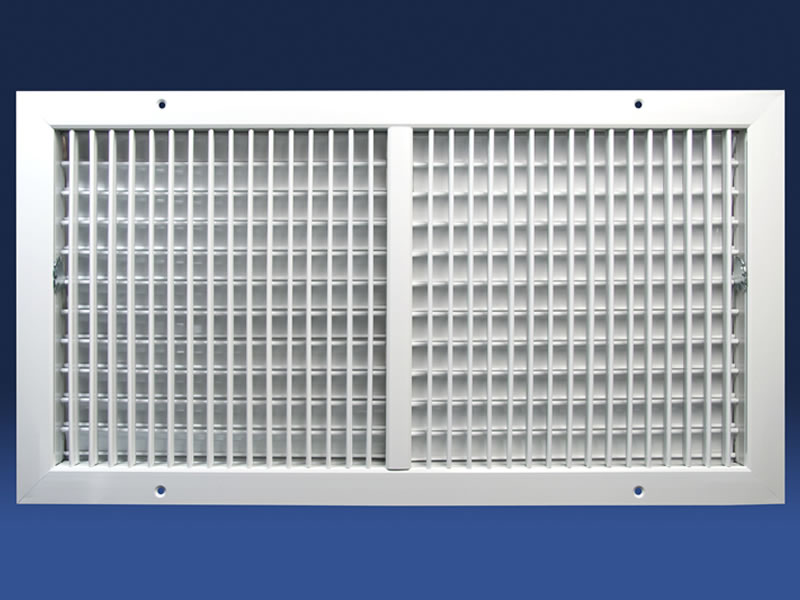

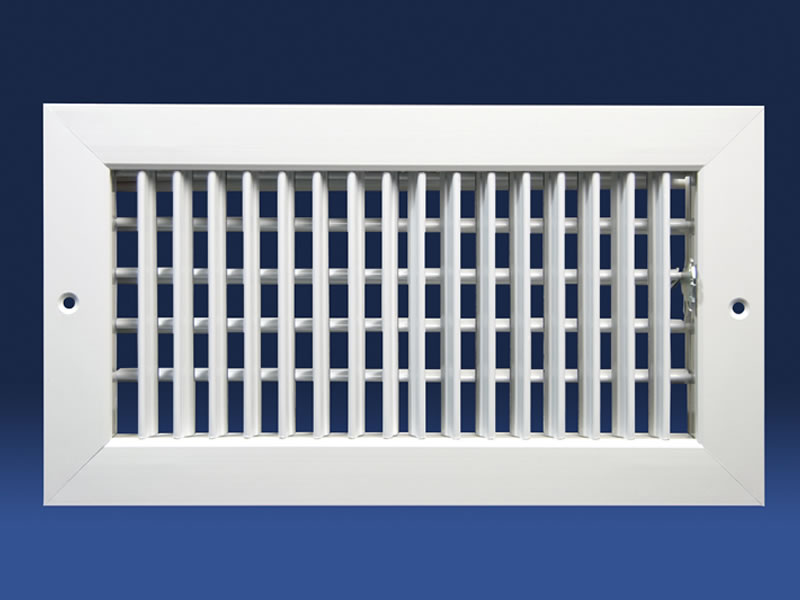

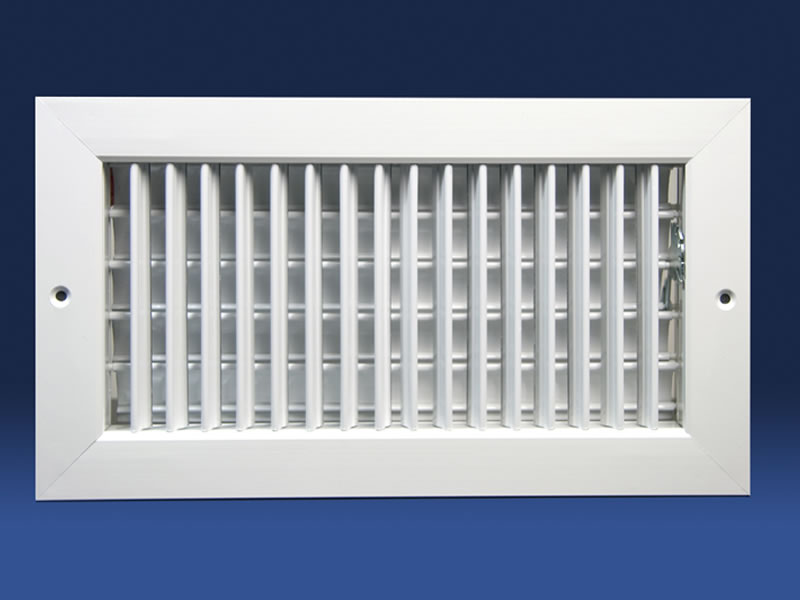

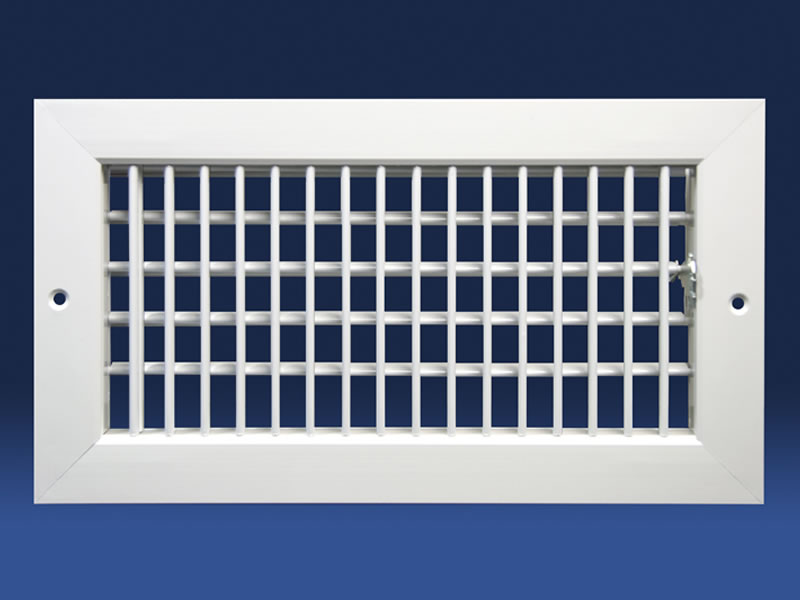

DA821 Single Deflection Supply Register With Vertical Blades And Multi Shutter Damper

mill
silver
white
adjustable damper
horizontal blade
vertical blade
ceiling
supply
wall
aluminum
rectangle

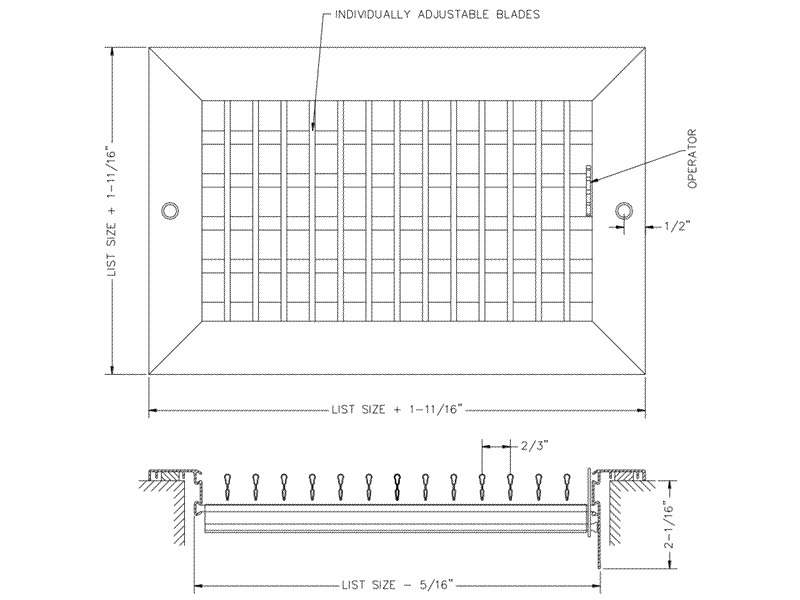

· Vertical individually adjustable blades on 2/3” spacing

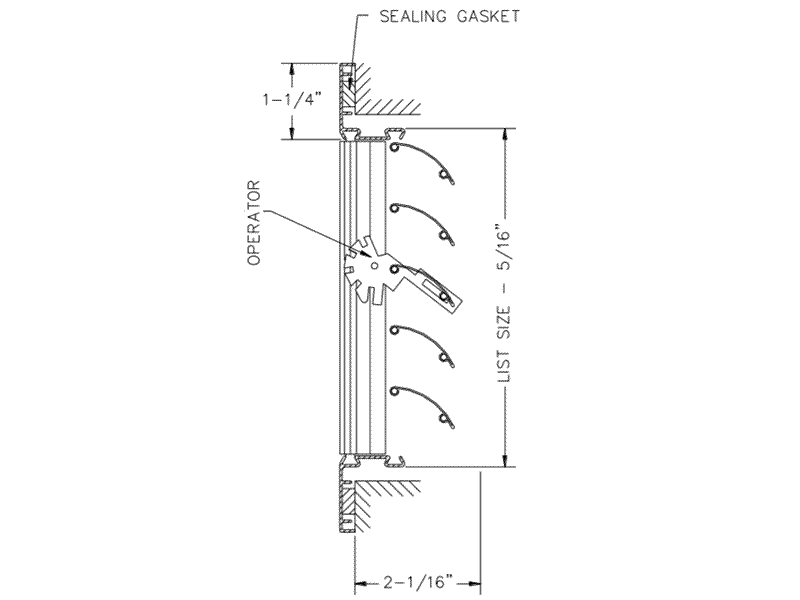

· Multi-Shutter Damper with handle operator
· Aluminum roll formed blade with semi-airfoil design
· Pressure fit nylon pivot pins (rattle free & non loosening)
· Countersunk screwholes c/w painted mounting screws
· Sealing gasket to prevent streaking on walls or ceiling
· Max blade length is 18”. Mullions used for larger sizes

Dayus products are made-to-order. They are NON-RETURNABLE.  The minimum Dayus order amount is $45 which will be reflected in the basket.  List dimensions are the hole measurements. Dayus grilles are undercut to fit inside the hole.

Friday Next Production means the order will ship not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday.
