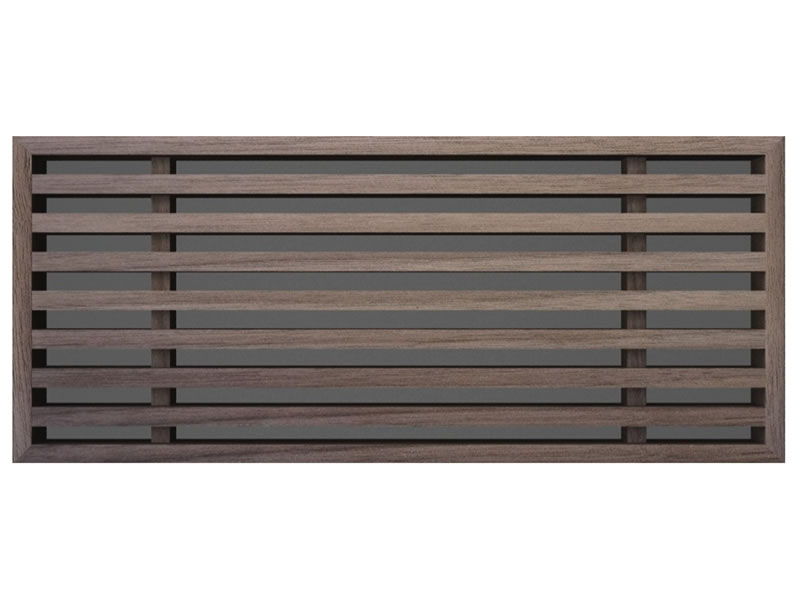

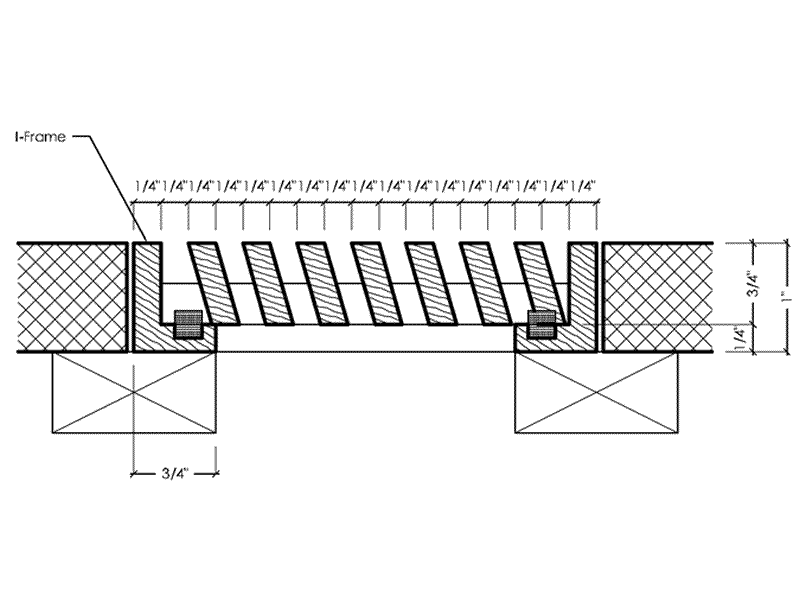

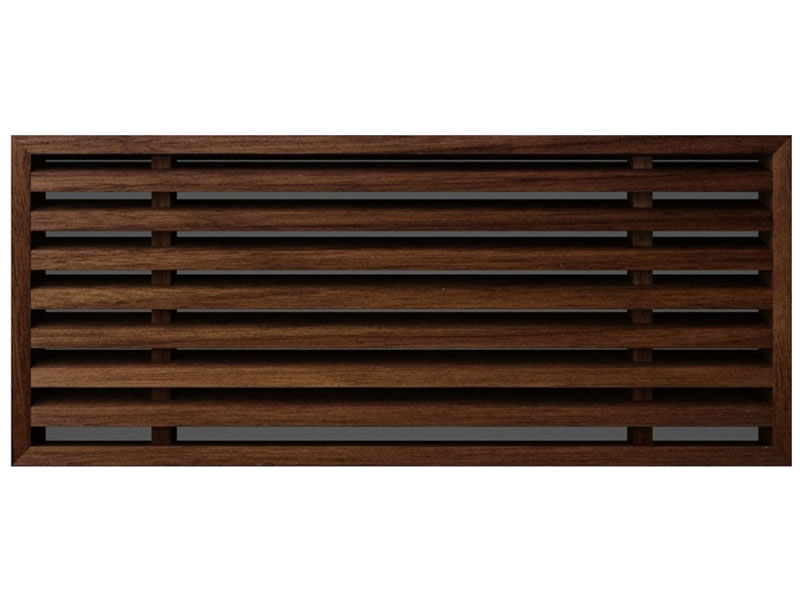

The Vexell AB angled bar grilles features a 15 degree deflection, a 0.25" thick bar with a 0.25" space. They are the perfect solution for applications requiring directional air deflection and minimizing duct visibility. The AB-I grille has NO flange and is fully recessed into the opening.

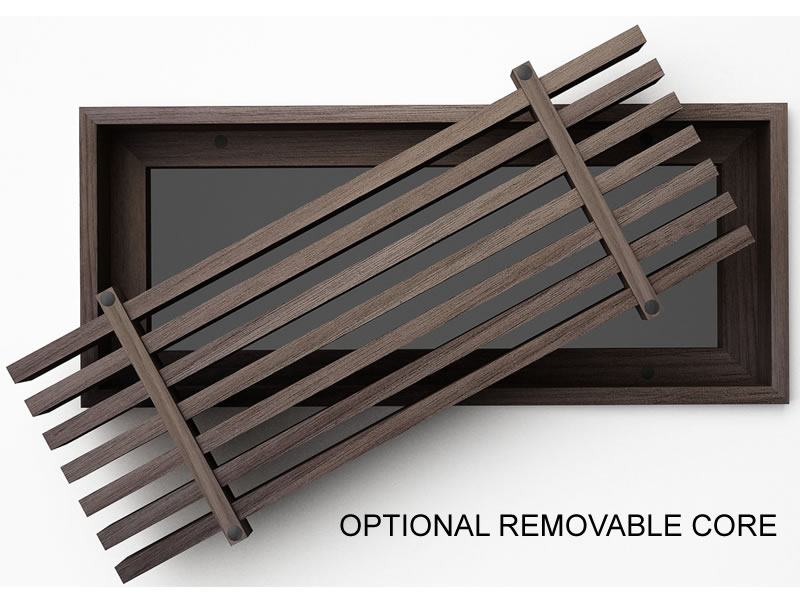

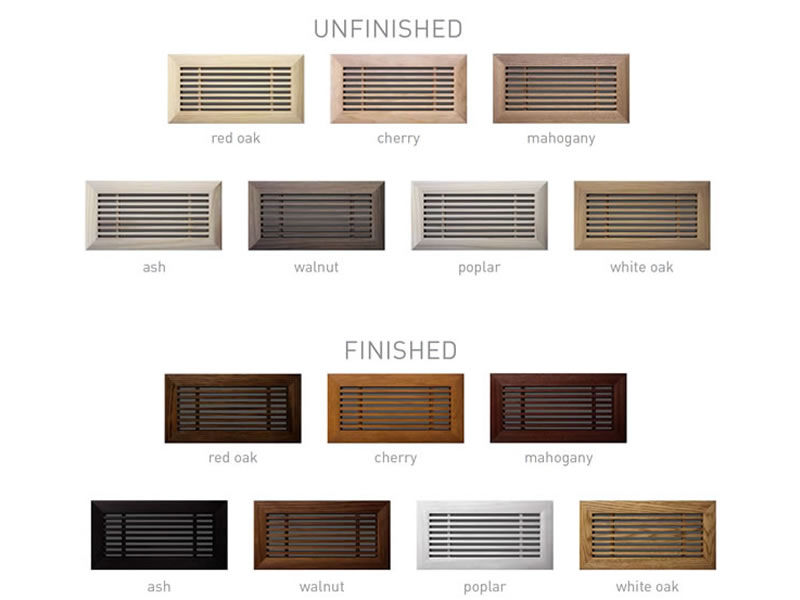

Available in multiple wood species and 2 core options. The cores can be selected as non-removable solid core or a removable magnet held core. *** NOT FOR FLOOR USE ***
Vexell grilles are made-to-order. They are NON-RETURNABLE.
The LIST Height and Length dimensions are the actual size of the grille. There is no undercut.
Standard production is 3-4 weeks.
