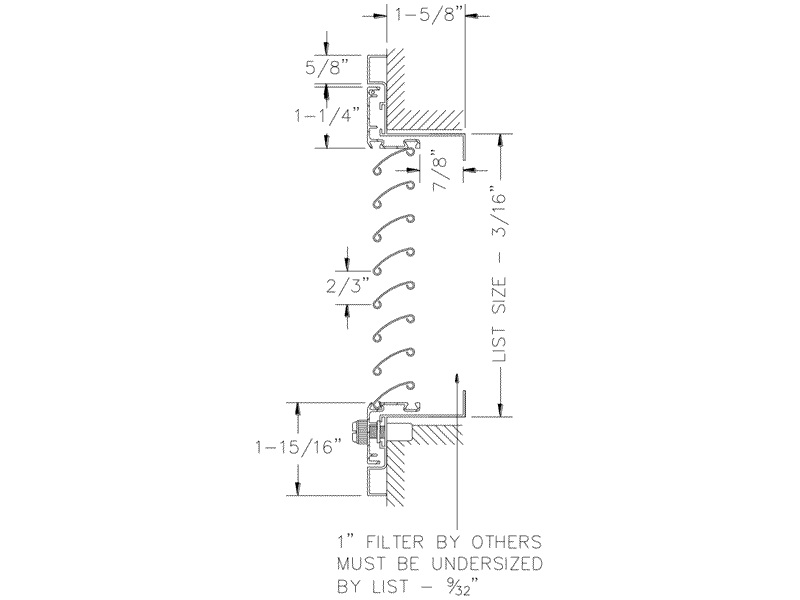

· Designed to fit most 1” filters (must be undersized 9/32” or more)

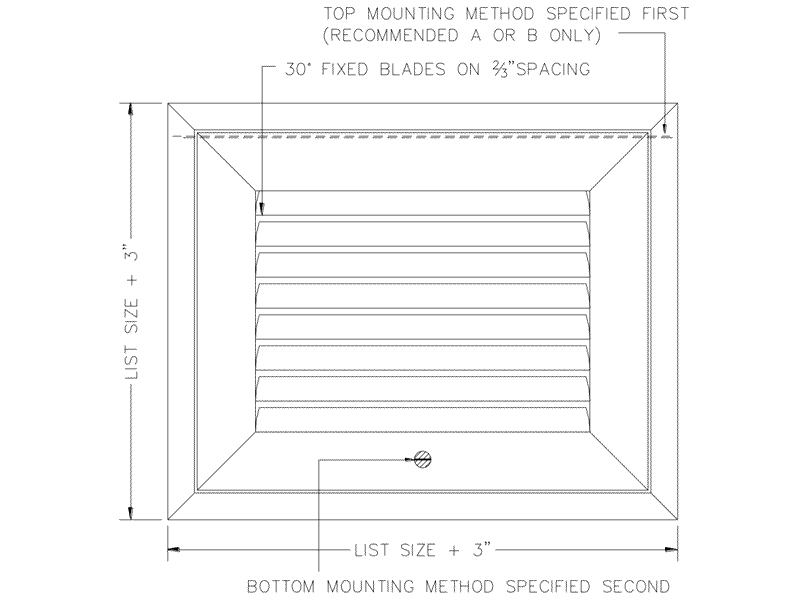

· Horizontal blades fixed on 30 degree deflection and 2/3” spacing
· Pressure fit nylon pivot pins (rattle free & non loosening)

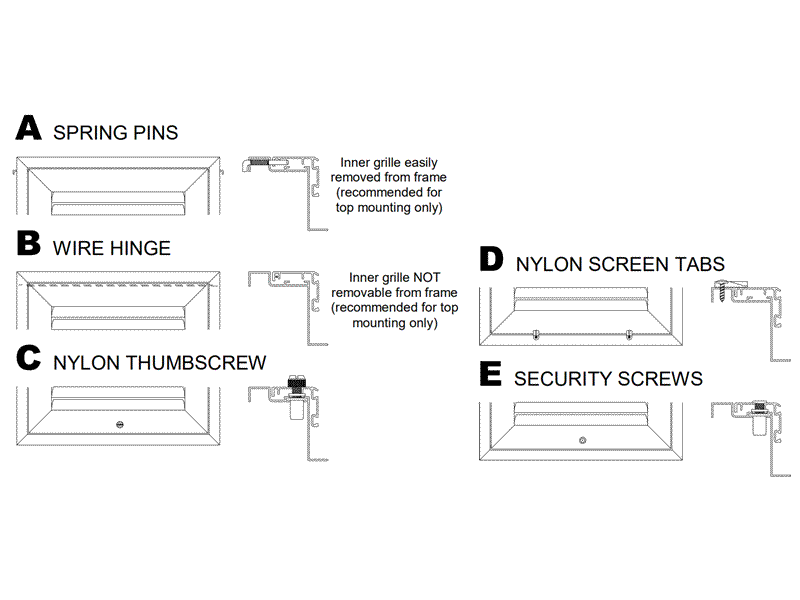

· A or B type hinges are recommended on top.
· Available on 2” increments as standard
· Max blade length is 22”. Mullions used for larger sizes
· Durable powdercoat painted finish
Dayus products are made-to-order. They are NON-RETURNABLE. The minimum Dayus order amount is $45 which will be reflected in the basket. List dimensions are the hole measurements. Dayus grilles are undercut to fit inside the hole.
Friday Next Production means the order will ship not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday.
