Made to Order
Vexell / Bar Linear Wood Grilles

Linear Bar i Frame Wood Grilles

unpainted
bar linear
exhaust
return
sill
supply
wall
wood
rectangle

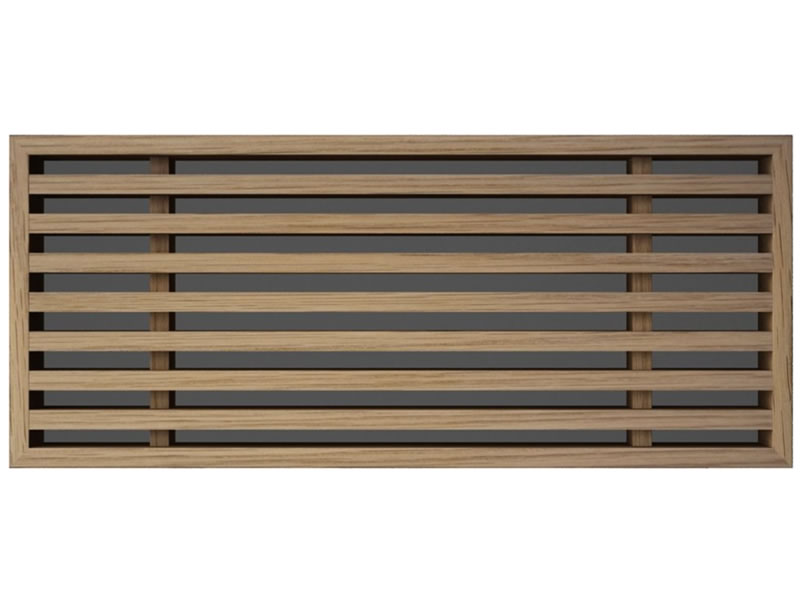

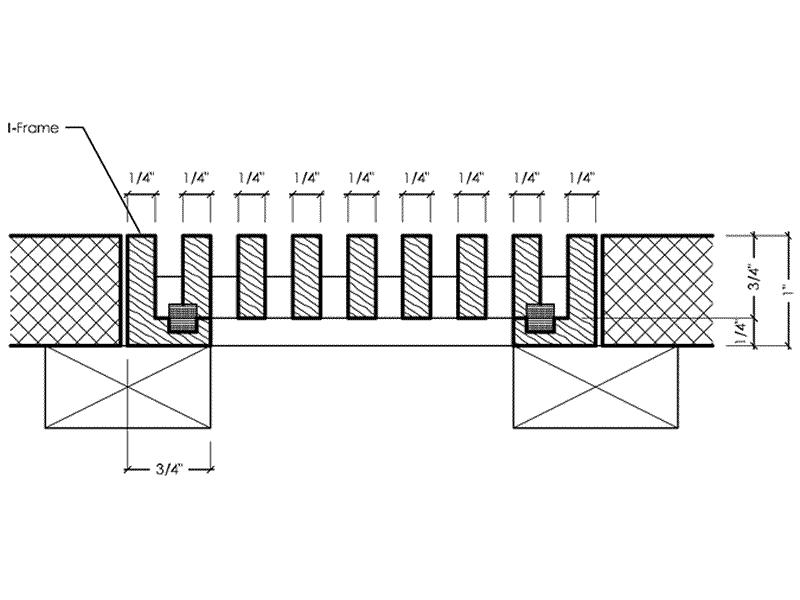

Sturdy and handsome, the Vexell LB linear bar grilles are their most commonly selected core type. At 0 degree deflection this core can be installed at any angle. At 1/4" thick this is their narrowest bar thickness. Selecting this thickness will produce a .25" bar space.  The LB-i grille has NO flange and is meant to be fully recessed into an opening.

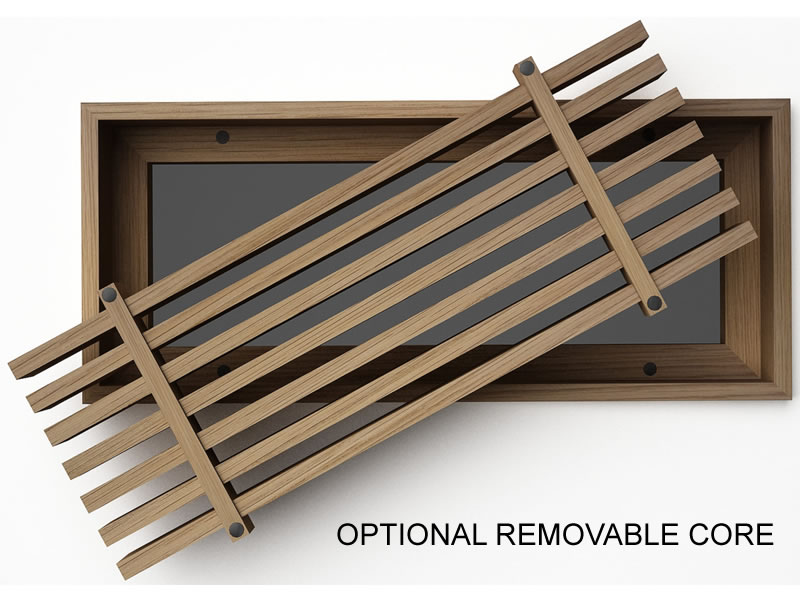

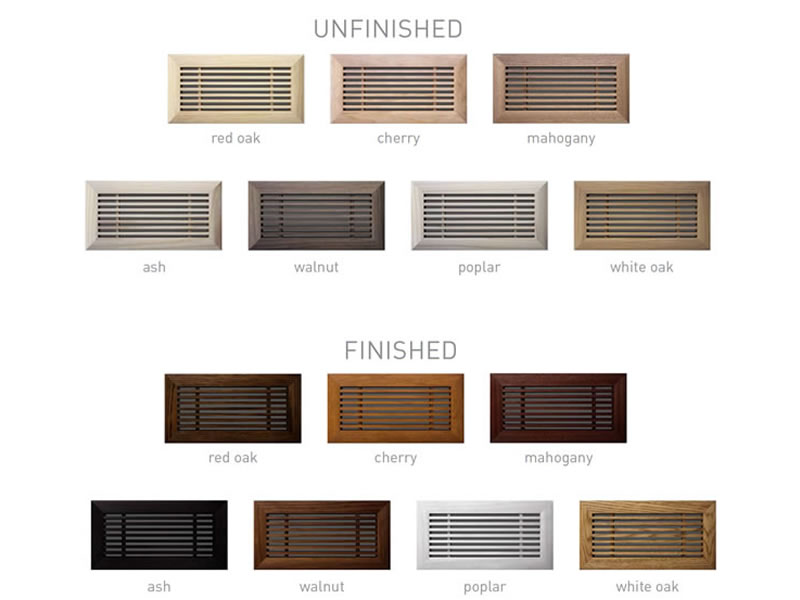

Available in multiple wood species and 2 core options.  The cores can be selected as non-removable solid core or a removable magnet held core.  *** NOT FOR FLOOR USE ***

Vexell grilles are made-to-order. They are NON-RETURNABLE.

The LIST Height and Length dimensions are the actual size of the grille. There is no undercut.

Standard production is 8 weeks

UPS Shipping Zones ups zone map icon

ups shipping zone map
