Made to Order
Vexell / Bar Linear Wood Grilles

Angled Bar F Frame Wood Grilles

unpainted
bar linear
exhaust
return
sill
supply
wall
wood
rectangle

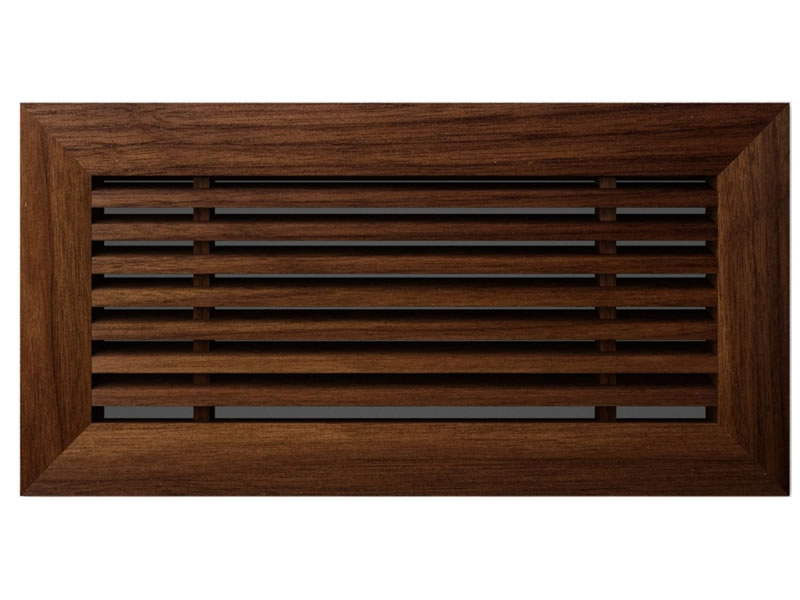

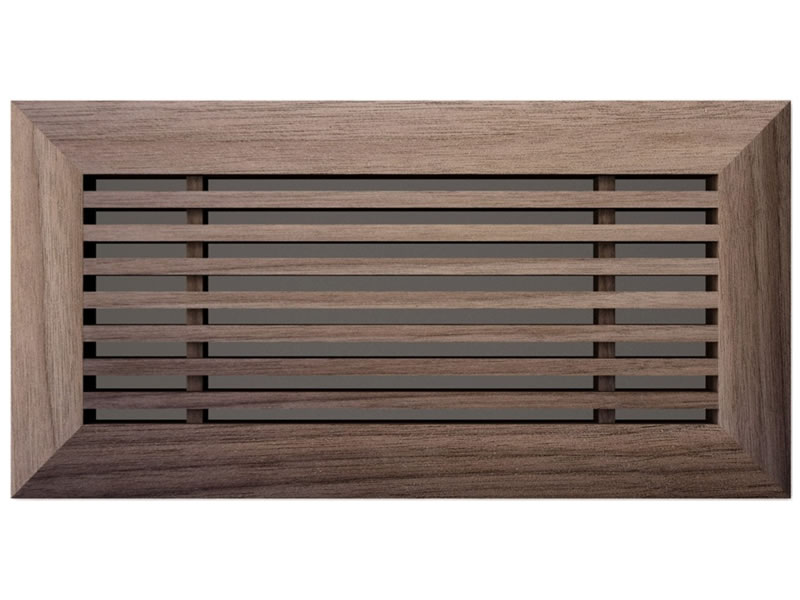

The Vexell AB angled bar grilles features a 15 degree deflection, a 0.25" thick bar with a 0.25" space. They are the perfect solution for applications requiring directional air deflection and minimizing duct visibility. The AB-F grille has a flange on all four sides.

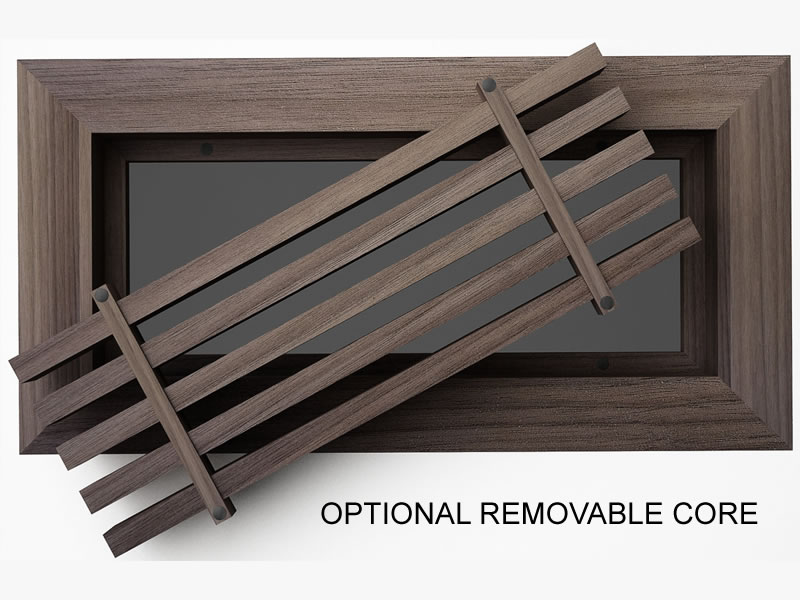

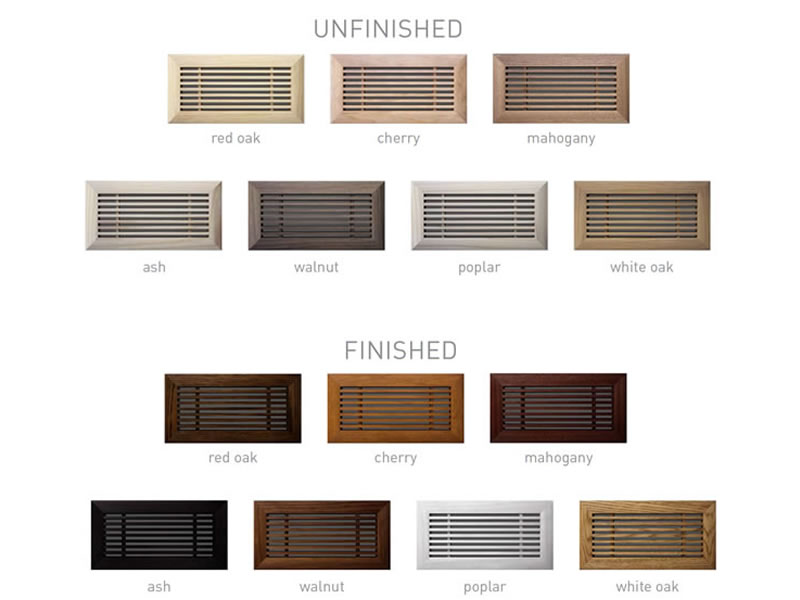

Available in multiple wood species and 2 core options.  The cores can be selected as non-removable solid core or a removable magnet held core.  *** NOT FOR FLOOR USE ***

Vexell grilles are made-to-order. They are NON-RETURNABLE.

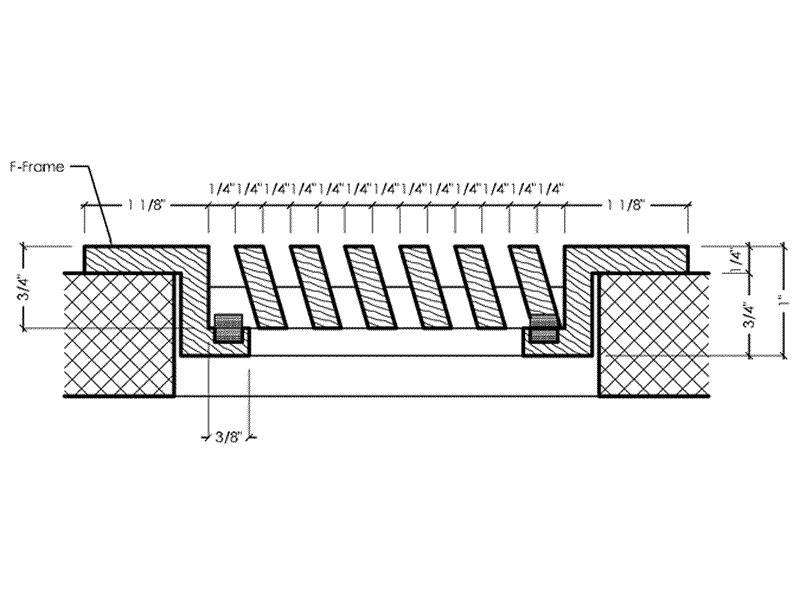

The LIST Height and Length are the size of the OPENING. The actual overall dimensions will be 1.25 inches bigger than list size in both H and L.

Standard production is 8 weeks

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
