shop by brand / TRUaire / Supply Blade Registers
product image product image product image product image product image
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
Stock Item
TRUaire / Supply Blade Registers

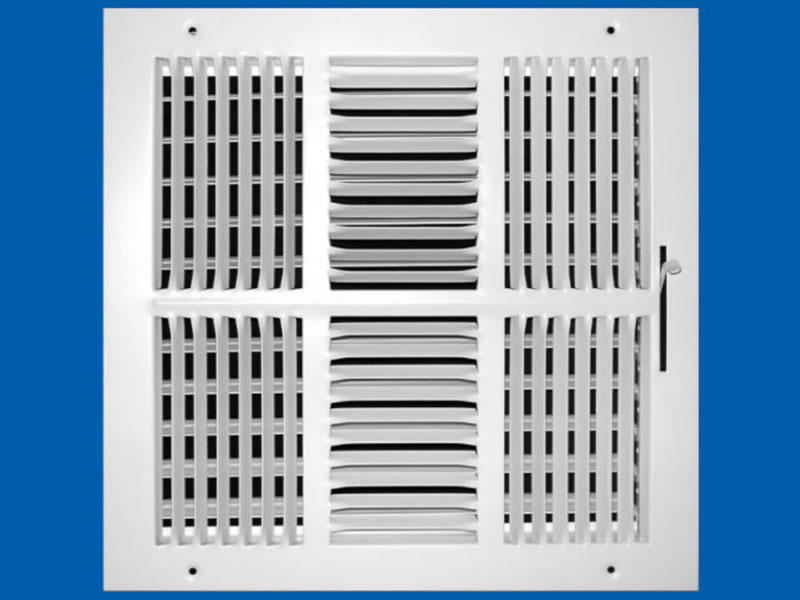

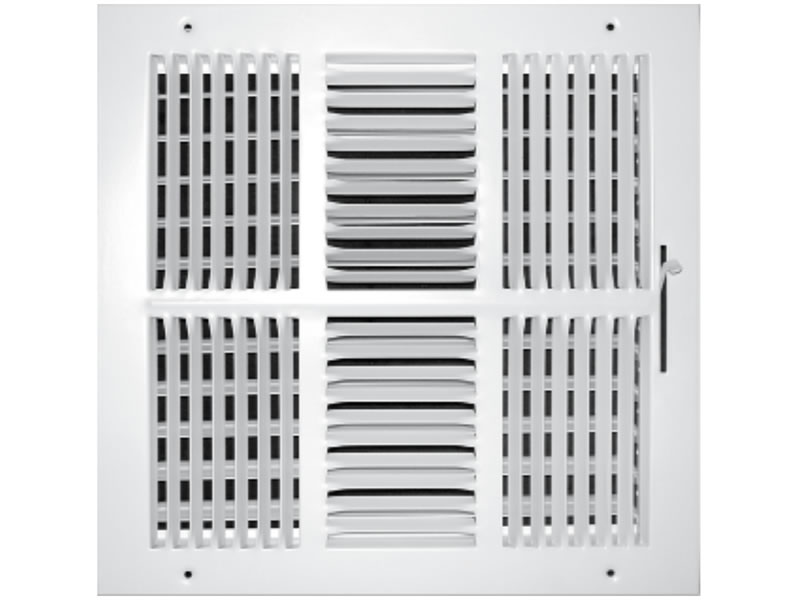

104M Stamped 4 Way Sidewall and Ceiling Registers

white
adjustable damper
horizontal blade
louver blades
vertical blade
ceiling
supply
wall
steel
rectangle
104M Features :
  • Stamped louver in a 4-way airflow pattern
  • 1/2" spaced with 45° blade angle
  • Single lever operated multi-louver shutter
  • Counter-sunk screw holes with 2" screws provided
  • Finished with white powder coating

Sizes listed below are LIST SIZES -- opening size.  A 12x12" LIST SIZE grille frame will slide into a 12x12" drywall opening. The actual outer size of the grille frame is LARGER.

TRUaire grilles are stocked in our Oregon warehouse.  Large stock quantities are also available in TRUaire's CA and TX warehouses.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

104M 06X06 6x6 inch (WxH - 7.75x7.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $12.60
104M 08X08 8x8 inch (WxH - 9.75x9.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $15.30
104M 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $19.10
104M 10X08 10x8 inch (WxH - 11.75x9.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $19.20
104M 10X10 10x10 inch (WxH - 11.75x11.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $24.50
104M 12X12 12x12 inch (WxH - 13.75x13.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $28.80
104M 14X10 14x10 inch (WxH - 15.75x11.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $25.80
104M 14X14 14x14 inch (WxH - 15.75x15.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $38.60
104M 16X16 16x16 inch (WxH - 17.75x17.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $46.60
104M 18X18 18x18 inch (WxH - 19.75x19.75 inch overall) TRUaire 104M series 4-way stamped steel ceiling or sidewall register. 1/2 inch fin spacing. White. 1 Day. In-stock $64.40
Add to cart

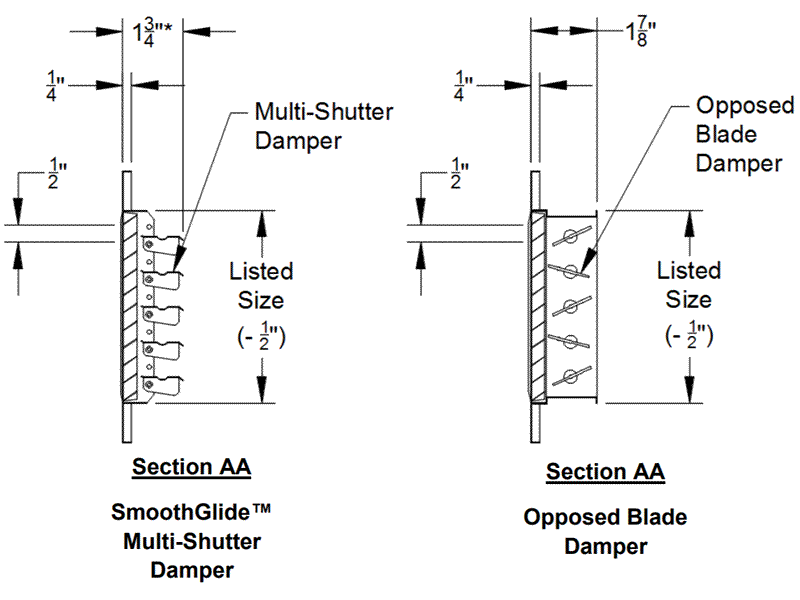

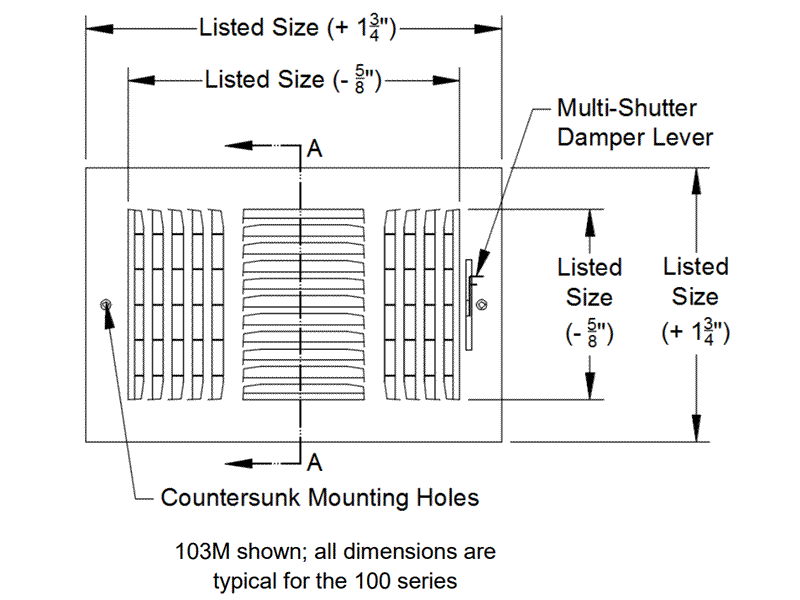

TRUaire 104M Submittal

Dimensions and sizing information

TRUaire 104M Tech Data

Airflow, pressure drop and velocity data

TRUaire Full Catalog

Full PDF Catalog of TRUaire Products

How to Properly Measure Registers and Grilles

To properly measure your TRUaire registers and grilles
