TRUaire / Supply Blade Registers

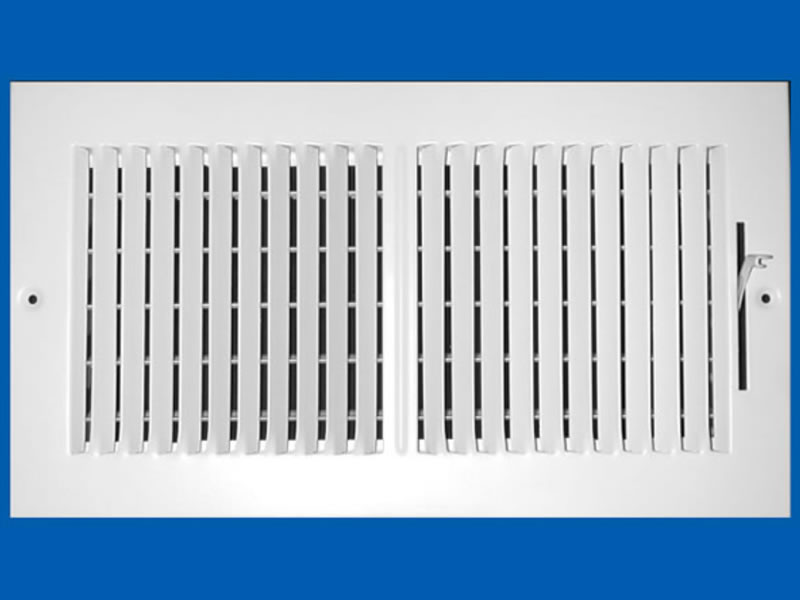

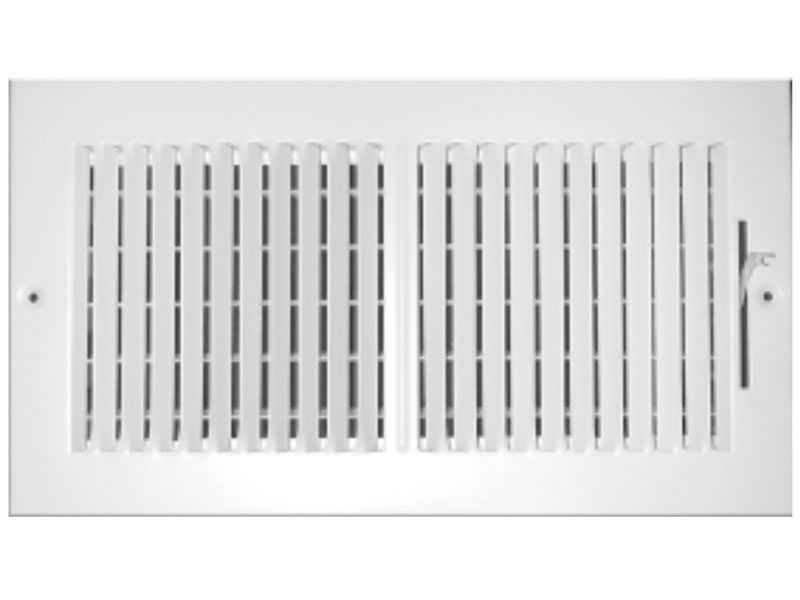

102M Stamped 2 Way Sidewall and Ceiling Registers

white
adjustable damper
louver blades
vertical blade
ceiling
supply
wall
steel
rectangle
102M Features :
  • Stamped louver in a 2-way airflow pattern
  • 1/2" spaced with 45° blade angle
  • Single lever operated multi-louver shutter
  • Counter-sunk screw holes with 2" screws provided
  • Finished with white powder coating

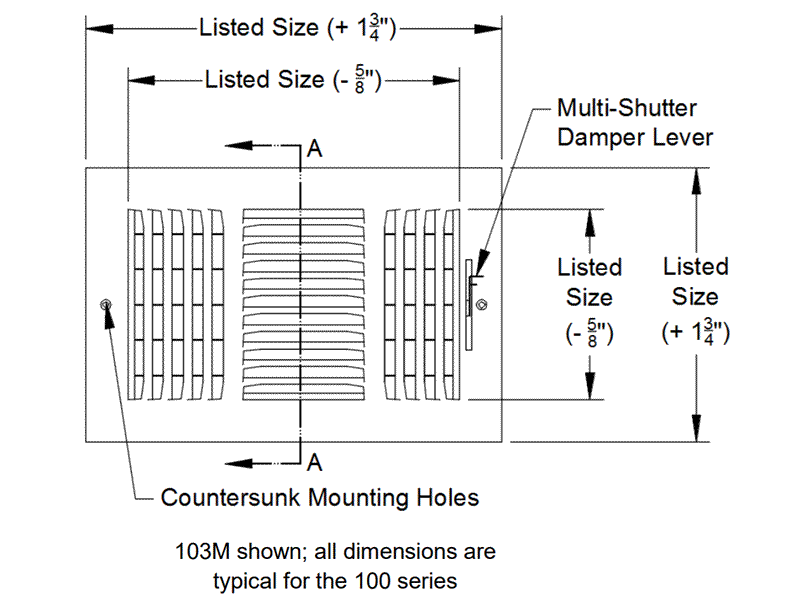

Sizes listed below are LIST SIZES -- opening size.  A 12x12" LIST SIZE grille frame will slide into a 12x12" drywall opening. The actual outer size of the grille frame is LARGER.

TRUaire grilles are stocked in our Oregon warehouse.  Large stock quantities are also available in TRUaire's CA and TX warehouses.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

102M 06X04 6x4 inch (WxH - 7.75x5.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $11.50
102M 06X06 6x6 inch (WxH - 7.75x7.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $14.10
102M 08X04 8x4 inch (WxH - 9.75x5.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $13.00
102M 08X06 8x6 inch (WxH - 9.75x7.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $14.40
102M 08X08 8x8 inch (WxH - 9.75x9.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $16.10
102M 10X04 10x4 inch (WxH - 11.75x5.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $13.40
102M 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $15.30
102M 10X08 10x8 inch (WxH - 11.75x9.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $17.50
102M 10X10 10x10 inch (WxH - 11.75x11.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $23.90
102M 12X04 12x4 inch (WxH - 13.75x5.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $14.40
102M 12X06 12x6 inch (WxH - 13.75x7.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $16.80
102M 12X08 12x8 inch (WxH - 13.75x9.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $19.60
102M 12X10 12x10 inch (WxH - 13.75x11.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $26.00
102M 12X12 12x12 inch (WxH - 13.75x13.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $30.10
102M 14X04 14x4 inch (WxH - 15.75x5.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $16.10
102M 14X08 14x8 inch (WxH - 15.75x9.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $20.60
102M 14X06 14x6 inch (WxH - 15.75x7.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $17.50
102M 14X10 14x10 inch (WxH - 15.75x11.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $27.70
102M 14X12 14x12 inch (WxH - 15.75x13.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $36.30
102M 14X14 14x14 inch (WxH - 15.75x15.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $37.40
102M 16X04 16x4 inch (WxH - 17.75x5.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $19.80
102M 16X06 16x6 inch (WxH - 17.75x7.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $22.00
102M 16X08 16x8 inch (WxH - 17.75x9.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $25.40
102M 16X10 16x10 inch (WxH - 17.75x11.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $30.10
102M 16X12 16x12 inch (WxH - 17.75x13.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $38.80
102M 18X04 18x4 inch (WxH - 19.75x5.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $27.50
102M 18X06 18x6 inch (WxH - 19.75x7.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $26.10
102M 18X08 18x8 inch (WxH - 19.75x9.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $28.30
102M 18X10 18x10 inch (WxH - 19.75x11.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $32.60
102M 18X12 18x12 inch (WxH - 19.75x13.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $38.00
102M 18X18 18x18 inch (WxH - 19.75x19.75 inch overall) TRUaire 102M series 2-way stamped steel ceiling or sidewall register. 2-way air deflection. White. 1 Day. In-stock $40.40
Add to cart

TRUaire 102M Submittal

Dimensions and sizing information

TRUaire 102M Tech Data

Airflow, pressure drop and velocity data

TRUaire Full Catalog

Full PDF Catalog of TRUaire Products
