Stock Item
TRUaire / Supply Blade Grilles

A520F and A520B Series Modular Core Surface Mount Diffusers

white
ceiling
supply
aluminum
rectangle

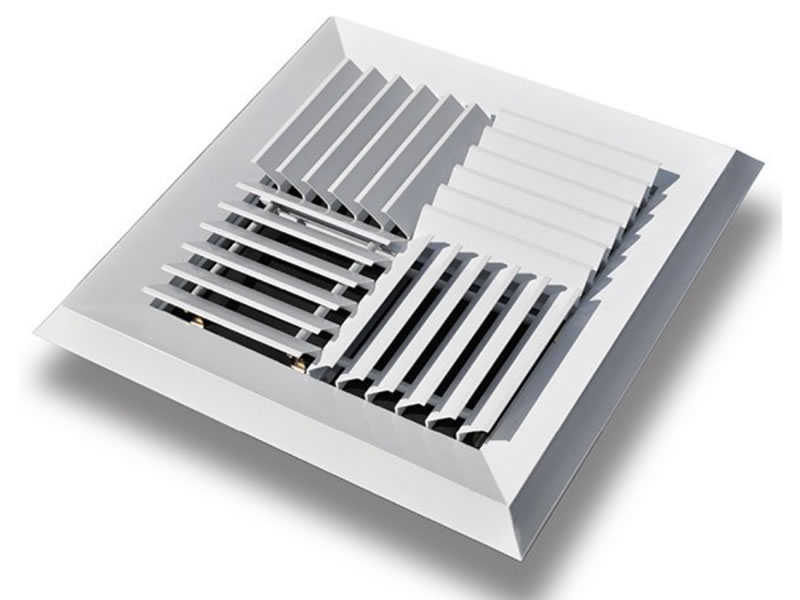

The A520 modular core products are manufactured in a surface mount design for drywall or sheetrock ceiling installations.  Made with top-quality extruded aluminium, the removable "cores" can be arranged in 1, 2, 3 and 4 way throw configurations.  They are easily removable for quick reconfiguration.

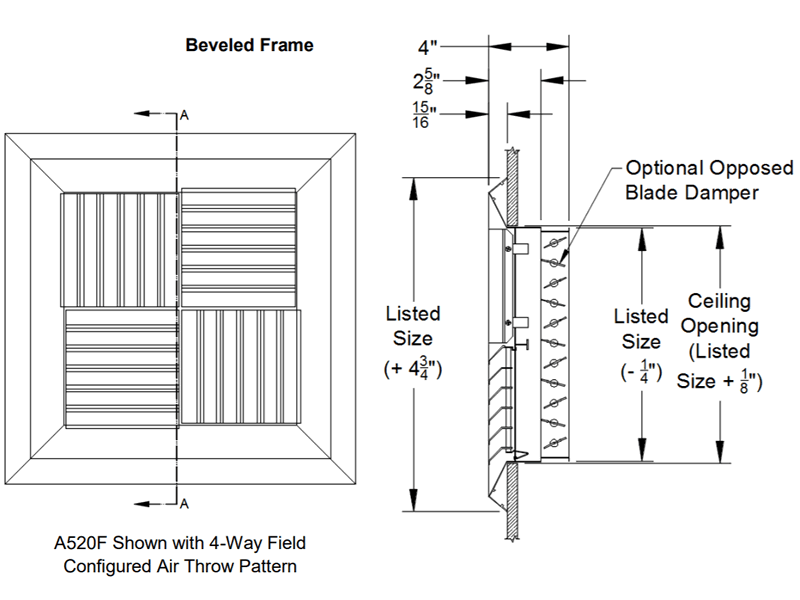

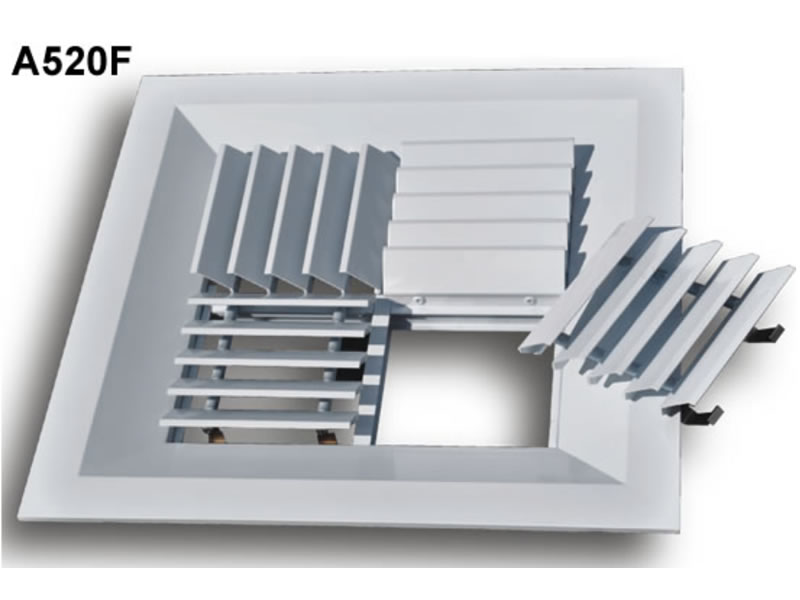

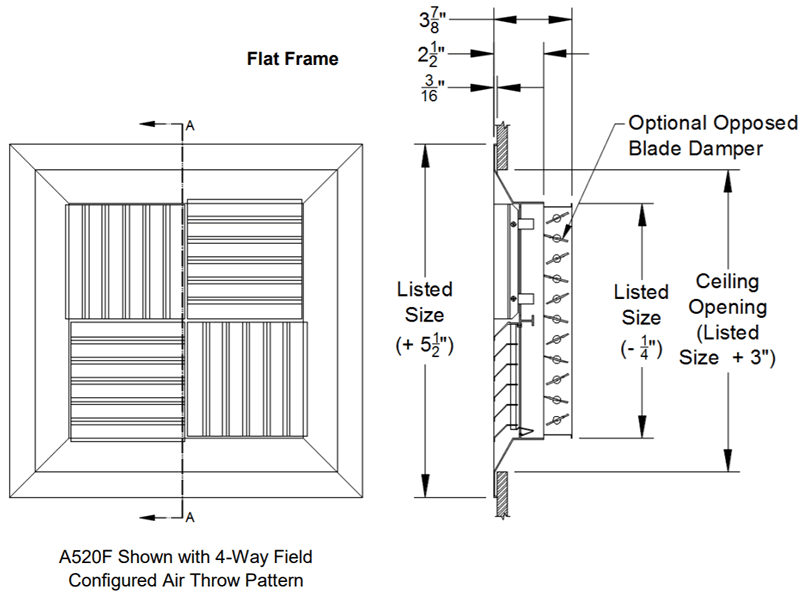

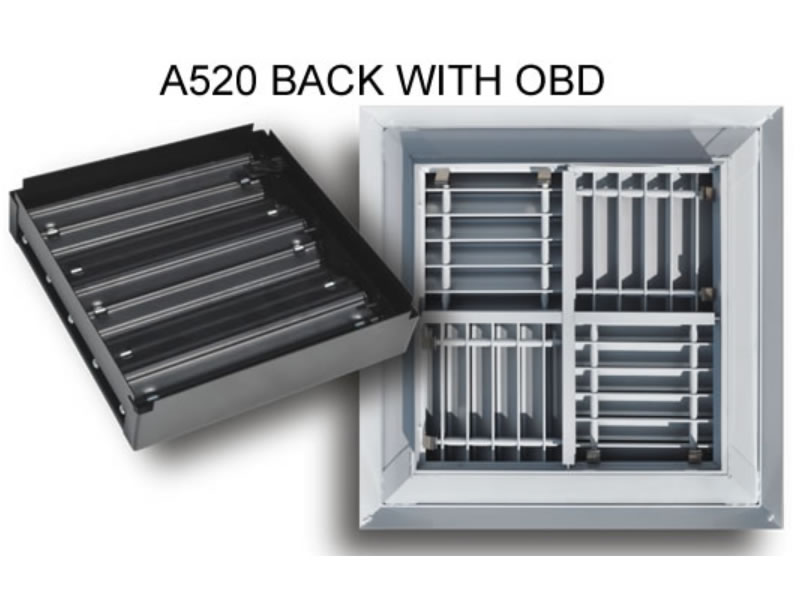

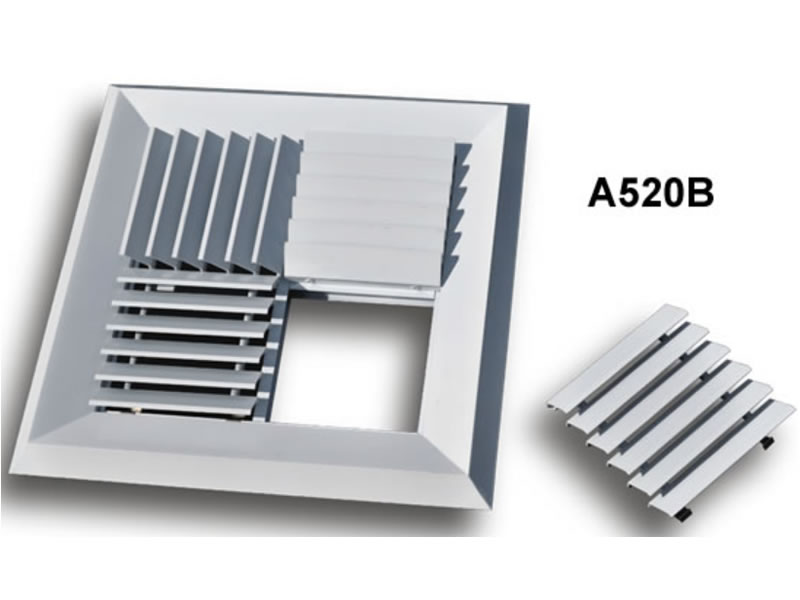

The A520F is the flat-frame design and the A520B is the beveled-frame design.  Optional opposed blade damper (OBD) system available.

SOLD IN BOX QUANTITY

TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

A520B 06X06 TRUaire 520B Series modular core surface mount diffusers. Beveled frame. 6x6 size. Box of 4. 5-6 Days $212.60
A520B 08X08 TRUaire 520B Series modular core surface mount diffusers. Beveled frame. 8x8 size. Box of 4. 5-6 Days $261.60
A520B 10X10 TRUaire 520B Series modular core surface mount diffusers. Beveled frame. 10x10 size. Box of 4. 5-6 Days $309.90
A520B 12X12 TRUaire 520B Series modular core surface mount diffusers. Beveled frame. 12x12 size. Box of 4. 5-6 Days $369.60
A520B 14X14 TRUaire 520B Series modular core surface mount diffusers. Beveled frame. 14x14 size. Box of 4. 5-6 Days $460.00
A520B 16X16 TRUaire 520B Series modular core surface mount diffusers. Beveled frame. 16x16 size. Box of 4. 5-6 Days $569.40
A520B 18X18 TRUaire 520B Series modular core surface mount diffusers. Beveled frame. 18x18 size. Box of 4. 5-6 Days $701.10
A520B 20X20 TRUaire 520B Series modular core surface mount diffusers. Beveled frame. 20x20 size. Box of 4. 5-6 Days $855.30
A520B 24X24 TRUaire 520B Series modular core surface mount diffusers. Beveled frame. 24x24 size. Box of 4. 5-6 Days $952.00
A520F 06X06 TRUaire 520F Series modular core surface mount diffusers. Flat frame. 6x6 size. Box of 4. 5-6 Days $212.60
A520F 08X08 TRUaire 520F Series modular core surface mount diffusers. Flat frame. 8x8 size. Box of 4. 5-6 Days $261.60
A520F 10X10 TRUaire 520F Series modular core surface mount diffusers. Flat frame. 10x10 size. Box of 4. 5-6 Days $309.90
A520F 12X12 TRUaire 520F Series modular core surface mount diffusers. Flat frame. 12x12 size. Box of 4. 5-6 Days $369.60
A520F 14X14 TRUaire 520F Series modular core surface mount diffusers. Flat frame. 14x14 size. Box of 4. 5-6 Days $460.00
A520F 16X16 TRUaire 520F Series modular core surface mount diffusers. Flat frame. 16x16 size. Box of 4. 5-6 Days $569.40
A520F 18X18 TRUaire 520F Series modular core surface mount diffusers. Flat frame. 18x18 size. Box of 4. 5-6 Days $701.10
A520F 20X20 TRUaire 520F Series modular core surface mount diffusers. Flat frame. 20x20 size. Box of 4. 5-6 Days $855.30
A520F 24X24 TRUaire 520F Series modular core surface mount diffusers. Flat frame. 24x24 size. Box of 4. 5-6 Days $855.30
Add to cart

TRUaire A520 Submittal

Dimensions and sizing information

TRUaire A520 Performance Data

Airflow, pressure drop and velocity data

TRUaire Full Catalog

Full PDF Catalog of TRUaire Products

How to Properly Measure Registers and Grilles

To properly measure your TRUAire registers and grilles
