Stock Item
TRUaire / Spiral Diffusers without Saddle

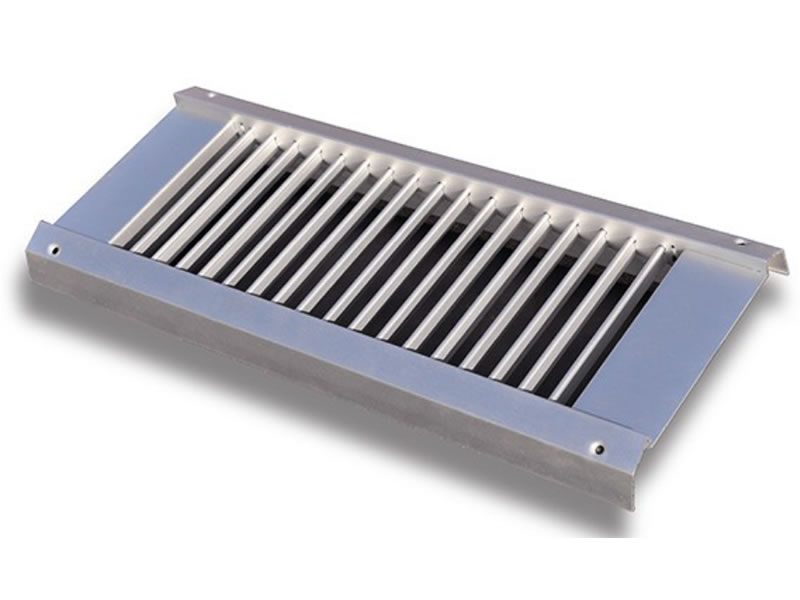

SU1A-S Universal Spiral Diffusers With Scoop Aluminum Finish

mill
unpainted
spiral duct
aluminum
steel
rectangle

Spiral SU1A-S Universal Duct Diffusers were born of the rustic exposed ceiling era in architectural design. Wherever air needs to leave ductwork and enter the conditioned space a hole is cut in the duct. A register is then attached for directional air control and aesthetics. These universal diffusers do not includes a matched duct saddle but instead seal to the duct using the included thick gasket.

  • Unfinished aluminum appearance
  • Single deflection configuration

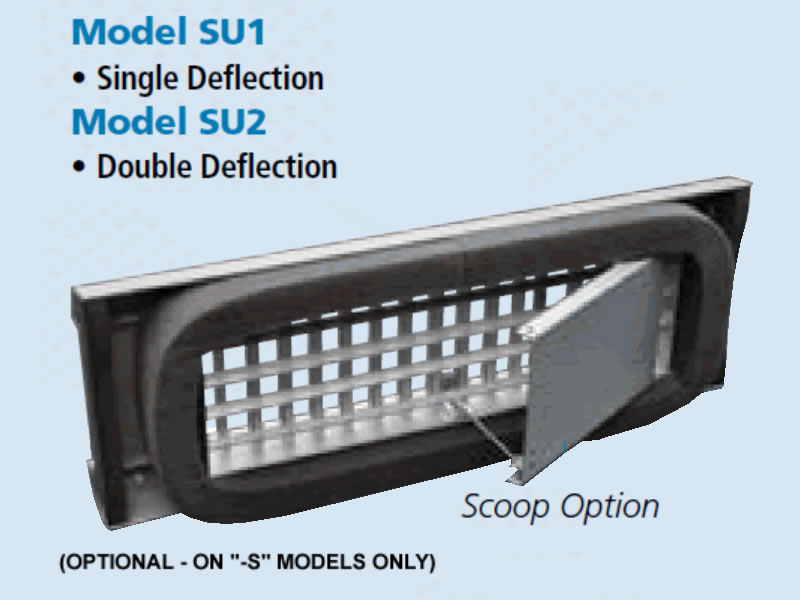

  • Includes adjustable air scoop
  • No damper
  • No saddle. Includes thick sealing gasket
  • Adjustable bars on grille face

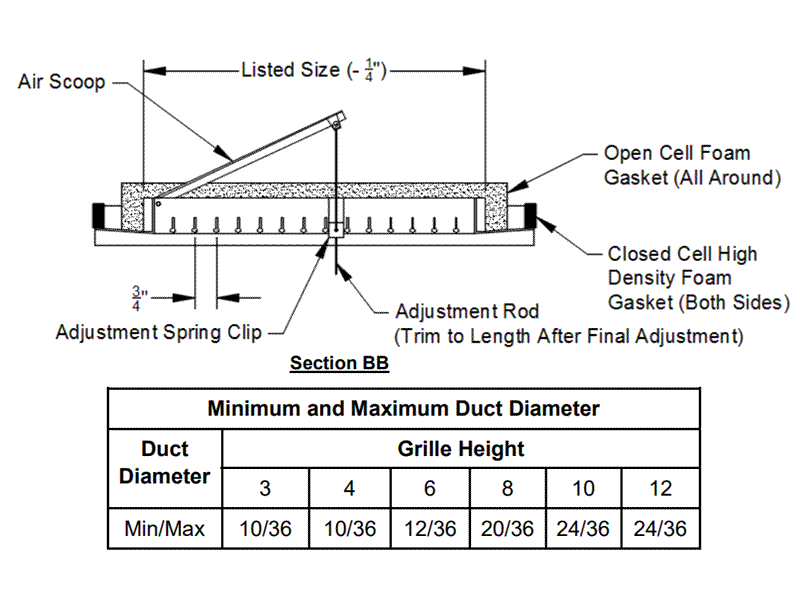

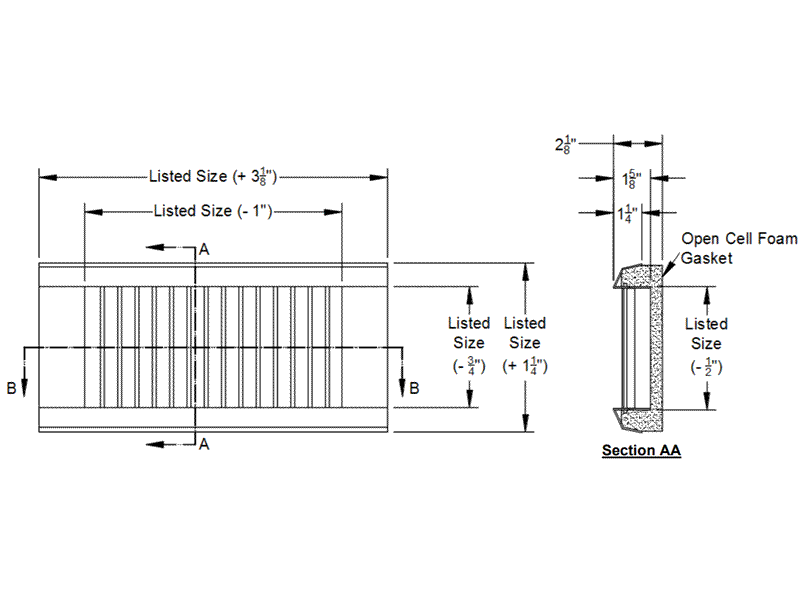

LIST SIZE is the size of the duct opening.  MINIMUM DUCT SIZE IS REQUIRED FOR SEALING.  SEE SUBMITTAL SHEET OR SPECS TAB FOR MIN DUCT SIZE INFO AND ACTUAL GRILLE DIMENSIONS.

TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

SU1A-S 10X04 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 10x04" LIST size. 5-6 Days $129.50
SU1A-S 10X06 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 10x06" LIST size. 5-6 Days $138.10
SU1A-S 10X08 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 10x08" LIST size. 5-6 Days $143.30
SU1A-S 10X10 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 10x10" LIST size. 5-6 Days $160.40
SU1A-S 10X12 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 10x12" LIST size. 5-6 Days $178.50
SU1A-S 12X04 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 12x04" LIST size. 5-6 Days $138.80
SU1A-S 12X06 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 12x06" LIST size. 5-6 Days $140.80
SU1A-S 12X08 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 12x08" LIST size. 5-6 Days $145.70
SU1A-S 12X10 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 12x10" LIST size. 5-6 Days $178.50
SU1A-S 12X12 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 12x12" LIST size. 5-6 Days $181.60
SU1A-S 14X04 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 14x04" LIST size. 5-6 Days $142.30
SU1A-S 14X06 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 14x06" LIST size. 5-6 Days $148.40
SU1A-S 14X08 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 14x08" LIST size. 5-6 Days $154.40
SU1A-S 14X10 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 14x10" LIST size. 5-6 Days $167.40
SU1A-S 14X12 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 14x12" LIST size. 5-6 Days $175.90
SU1A-S 16X04 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 16x04" LIST size. 5-6 Days $146.40
SU1A-S 16X06 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 16x06" LIST size. 5-6 Days $154.40
SU1A-S 16X08 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 16x08" LIST size. 5-6 Days $161.10
SU1A-S 16X10 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 16x10" LIST size. 5-6 Days $175.60
SU1A-S 16X12 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 16x12" LIST size. 5-6 Days $180.60
SU1A-S 18X04 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 18x04" LIST size. 5-6 Days $151.40
SU1A-S 18X06 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 18x06" LIST size. 5-6 Days $161.90
SU1A-S 18X08 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 18x08" LIST size. 5-6 Days $169.60
SU1A-S 18X10 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 18x10" LIST size. 5-6 Days $174.70
SU1A-S 18X12 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 18x12" LIST size. 5-6 Days $183.60
SU1A-S 20X04 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 20x04" LIST size. 5-6 Days $155.70
SU1A-S 20X06 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 20x06" LIST size. 5-6 Days $166.10
SU1A-S 20X08 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 20x08" LIST size. 5-6 Days $175.60
SU1A-S 20X10 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 20x10" LIST size. 5-6 Days $178.70
SU1A-S 20X12 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 20x12" LIST size. 5-6 Days $187.20
SU1A-S 24X04 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 24x04" LIST size. 5-6 Days $167.60
SU1A-S 24X06 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 24x06" LIST size. 5-6 Days $177.90
SU1A-S 24X08 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 24x08" LIST size. 5-6 Days $191.00
SU1A-S 24X10 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 24x10" LIST size. 5-6 Days $198.50
SU1A-S 24X12 TRUaire universal spiral diffuser. Single deflection, with SCOOP. Aluminum finish. 24x12" LIST size. 5-6 Days $205.70
