Stock Item
TRUaire / Spiral Diffusers with Saddle

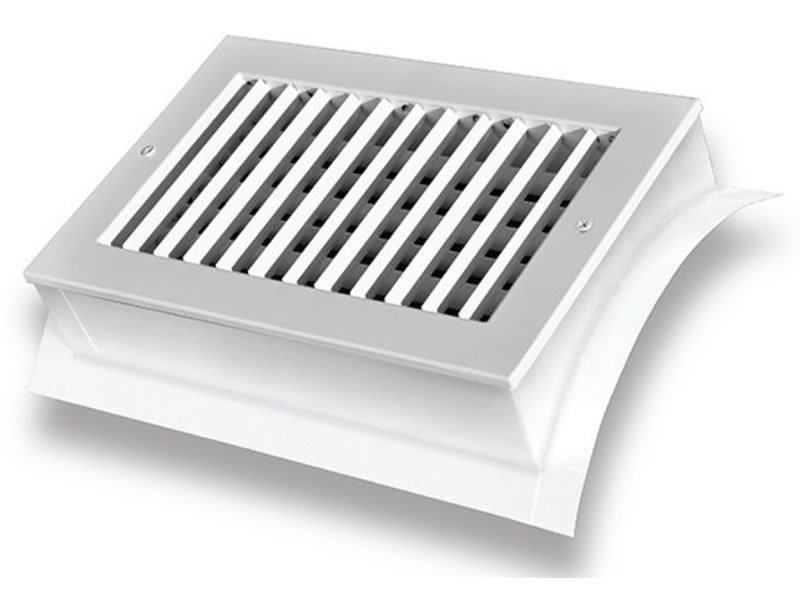

SD2W-S Saddle Mounted Spiral Diffusers With Scoop White Finish

white
spiral duct
aluminum
steel
rectangle

Spiral SD2W-S Duct Diffusers were born of the rustic exposed ceiling era in architectural design. Wherever air needs to leave ductwork and enter the conditioned space a hole is cut in the duct. A register is then attached for directional air control and aesthetics. The saddle type diffuser is available in either single deflection or double deflection blade configurations.

  • White powder-coat finish
  • Double deflection configuration

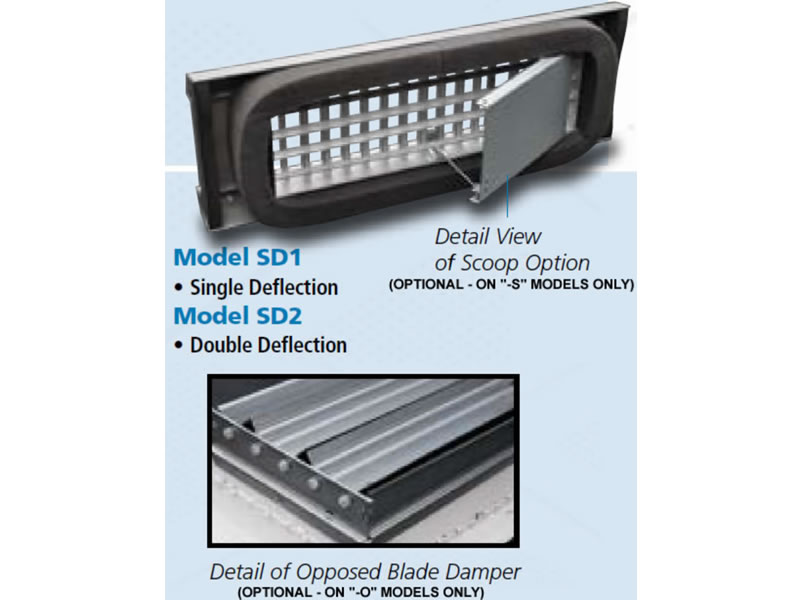

  • Includes adjustable air scoop
  • No damper
  • Saddle curved to fit duct radius
  • Adjustable bars on grille face

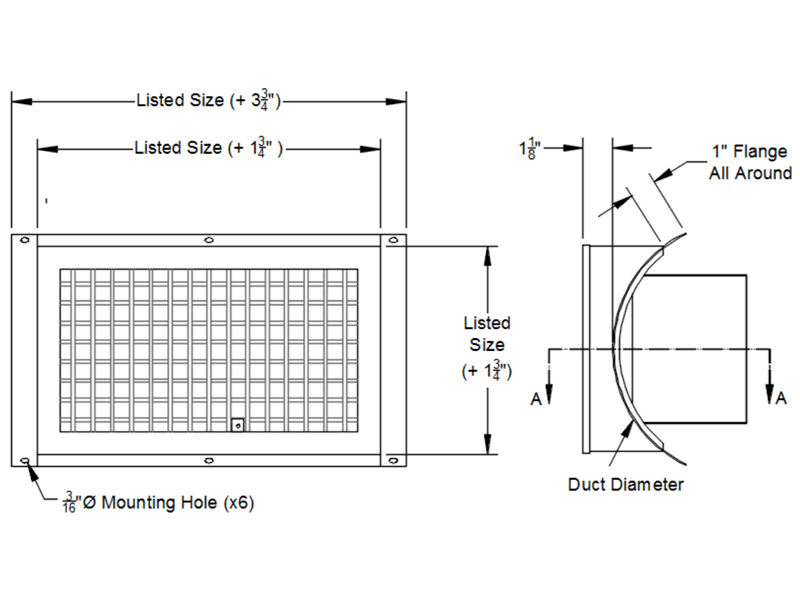

LIST SIZE is the size of the duct opening.  See submittal sheet for actual grille dimensions.

TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

SD2W-S 10X04-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 10x04" LIST size, 10" round duct saddle. 5-6 Days $175.90
SD2W-S 10X04-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 10x04" LIST size, 12" round duct saddle. 5-6 Days $175.90
SD2W-S 10X06-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 10x06" LIST size, 10" round duct saddle. 5-6 Days $189.60
SD2W-S 10X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 10x06" LIST size, 12" round duct saddle. 5-6 Days $189.60
SD2W-S 10X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 10x06" LIST size, 14" round duct saddle. 5-6 Days $189.60
SD2W-S 12X04-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 12x04" LIST size, 10" round duct saddle. 5-6 Days $183.60
SD2W-S 12X04-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 12x04" LIST size, 12" round duct saddle. 5-6 Days $183.60
SD2W-S 12X04-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 12x04" LIST size, 14" round duct saddle. 5-6 Days $183.60
SD2W-S 12X04-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 12x04" LIST size, 16" round duct saddle. 5-6 Days $183.60
SD2W-S 12X04-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 12x04" LIST size, 18" round duct saddle. 5-6 Days $183.60
SD2W-S 12X06-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 12x06" LIST size, 10" round duct saddle. 5-6 Days $194.70
SD2W-S 12X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 12x06" LIST size, 12" round duct saddle. 5-6 Days $194.70
SD2W-S 12X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 12x06" LIST size, 14" round duct saddle. 5-6 Days $194.70
SD2W-S 14X04-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x04" LIST size, 10" round duct saddle. 5-6 Days $188.30
SD2W-S 14X04-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x04" LIST size, 12" round duct saddle. 5-6 Days $188.30
SD2W-S 14X04-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x04" LIST size, 14" round duct saddle. 5-6 Days $188.30
SD2W-S 14X06-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x06" LIST size, 10" round duct saddle. 5-6 Days $200.80
SD2W-S 14X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x06" LIST size, 12" round duct saddle. 5-6 Days $200.80
SD2W-S 14X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x06" LIST size, 14" round duct saddle. 5-6 Days $200.80
SD2W-S 14X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x06" LIST size, 16" round duct saddle. 5-6 Days $200.80
SD2W-S 14X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x06" LIST size, 18" round duct saddle. 5-6 Days $200.80
SD2W-S 14X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x06" LIST size, 20" round duct saddle. 5-6 Days $200.80
SD2W-S 14X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x08" LIST size, 12" round duct saddle. 5-6 Days $211.70
SD2W-S 14X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x08" LIST size, 14" round duct saddle. 5-6 Days $211.70
SD2W-S 14X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x08" LIST size, 16" round duct saddle. 5-6 Days $211.70
SD2W-S 14X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 14x08" LIST size, 18" round duct saddle. 5-6 Days $211.70
SD2W-S 16X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 16x06" LIST size, 12" round duct saddle. 5-6 Days $219.00
SD2W-S 16X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 16x06" LIST size, 14" round duct saddle. 5-6 Days $219.00
SD2W-S 16X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 16x06" LIST size, 16" round duct saddle. 5-6 Days $219.00
SD2W-S 16X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 16x06" LIST size, 18" round duct saddle. 5-6 Days $219.00
SD2W-S 16X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 16x08" LIST size, 12" round duct saddle. 5-6 Days $240.30
SD2W-S 16X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 16x08" LIST size, 14" round duct saddle. 5-6 Days $240.30
SD2W-S 16X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 16x08" LIST size, 16" round duct saddle. 5-6 Days $240.30
SD2W-S 18X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 18x06" LIST size, 12" round duct saddle. 5-6 Days $229.00
SD2W-S 18X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 18x06" LIST size, 14" round duct saddle. 5-6 Days $229.00
SD2W-S 18X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 18x06" LIST size, 16" round duct saddle. 5-6 Days $229.00
SD2W-S 18X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 18x06" LIST size, 18" round duct saddle. 5-6 Days $229.00
SD2W-S 18X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 18x08" LIST size, 12" round duct saddle. 5-6 Days $246.20
SD2W-S 18X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 18x08" LIST size, 14" round duct saddle. 5-6 Days $246.20
SD2W-S 18X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 18x08" LIST size, 16" round duct saddle. 5-6 Days $246.20
SD2W-S 20X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x06" LIST size, 12" round duct saddle. 5-6 Days $242.30
SD2W-S 18X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 18x08" LIST size, 18" round duct saddle. 5-6 Days $246.20
SD2W-S 20X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x06" LIST size, 14" round duct saddle. 5-6 Days $242.30
SD2W-S 20X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x06" LIST size, 16" round duct saddle. 5-6 Days $242.30
SD2W-S 20X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x06" LIST size, 18" round duct saddle. 5-6 Days $242.30
SD2W-S 20X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x06" LIST size, 20" round duct saddle. 5-6 Days $242.30
SD2W-S 20X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x08" LIST size, 12" round duct saddle. 5-6 Days $249.80
SD2W-S 20X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x08" LIST size, 14" round duct saddle. 5-6 Days $249.80
SD2W-S 20X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x08" LIST size, 16" round duct saddle. 5-6 Days $249.80
SD2W-S 20X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x08" LIST size, 18" round duct saddle. 5-6 Days $249.80
SD2W-S 20X08-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 20x08" LIST size, 20" round duct saddle. 5-6 Days $249.80
SD2W-S 24X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 24x06" LIST size, 12" round duct saddle. 5-6 Days $257.80
SD2W-S 24X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 24x06" LIST size, 14" round duct saddle. 5-6 Days $257.80
SD2W-S 24X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 24x06" LIST size, 16" round duct saddle. 5-6 Days $257.80
SD2W-S 24X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 24x06" LIST size, 18" round duct saddle. 5-6 Days $257.80
SD2W-S 24X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 24x06" LIST size, 20" round duct saddle. 5-6 Days $257.80
SD2W-S 30X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 30x08" LIST size, 12" round duct saddle. 5-6 Days $297.40
SD2W-S 30X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 30x08" LIST size, 14" round duct saddle. 5-6 Days $297.40
SD2W-S 30X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 30x08" LIST size, 16" round duct saddle. 5-6 Days $297.40
SD2W-S 30X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 30x08" LIST size, 18" round duct saddle. 5-6 Days $297.40
SD2W-S 30X08-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. White finish. 30x08" LIST size, 20" round duct saddle. 5-6 Days $297.40
