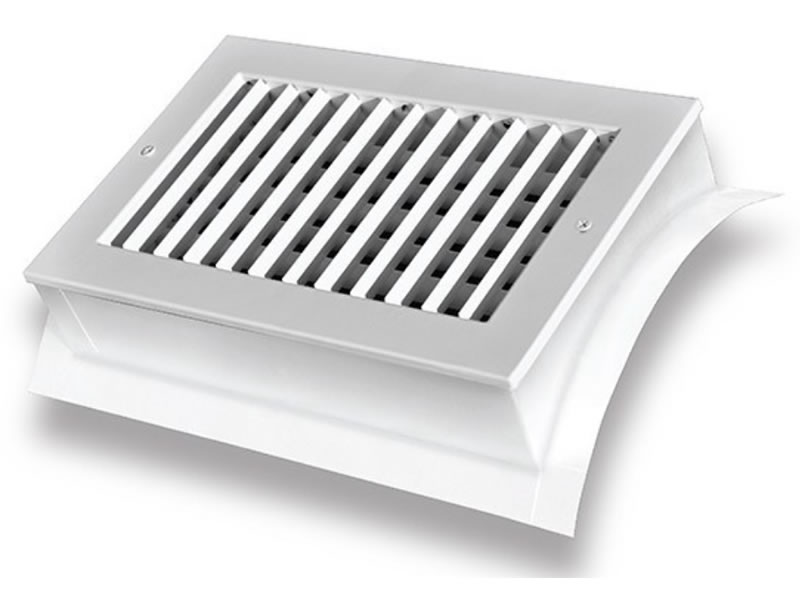

SD2W-O Saddle Mounted Spiral Diffusers With OBD White Finish
white
adjustable damper
spiral duct
aluminum
steel
rectangle
Spiral SD2W-O Duct Diffusers were born of the rustic exposed ceiling era in architectural design. Wherever air needs to leave ductwork and enter the conditioned space a hole is cut in the duct. A register is then attached for directional air control and aesthetics. The saddle type diffuser is available in either single deflection or double deflection blade configurations.
White powder-coat finish
Double deflection configuration

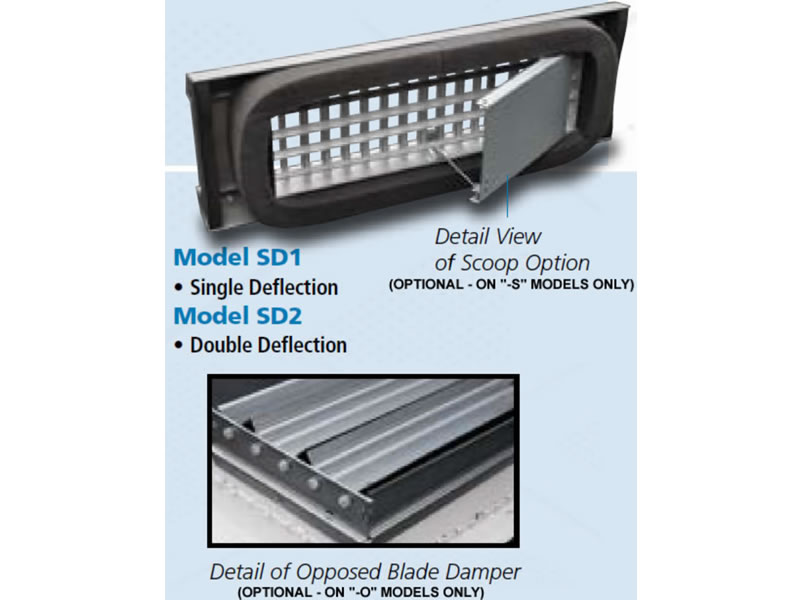

Includes OBD damper
No scoop
Saddle curved to fit duct radius
Adjustable bars on grille face

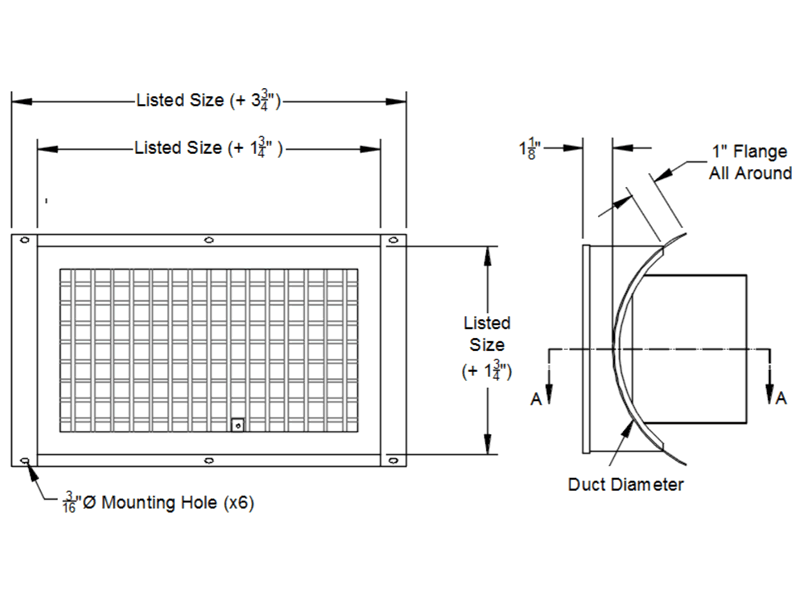

LIST SIZE is the size of the duct opening. See submittal sheet for actual grille dimensions.
TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.
UPS Shipping Zones
Order
Specs
Additional Videos
Model Number
Description
Ships
Unit Price
Quantity
Subtotals
SD2W-O 10X04-10 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 10x04" LIST size, 10" round duct saddle.5-6 Days$186.30
SD2W-O 10X04-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 10x04" LIST size, 12" round duct saddle.5-6 Days$186.30
SD2W-O 10X06-10 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 10x06" LIST size, 10" round duct saddle.5-6 Days$205.70
SD2W-O 10X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 10x06" LIST size, 12" round duct saddle.5-6 Days$205.70
SD2W-O 10X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 10x06" LIST size, 14" round duct saddle.5-6 Days$205.70
SD2W-O 12X04-10 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 12x04" LIST size, 10" round duct saddle.5-6 Days$197.60
SD2W-O 12X04-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 12x04" LIST size, 12" round duct saddle.5-6 Days$197.60
SD2W-O 12X04-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 12x04" LIST size, 14" round duct saddle.5-6 Days$197.60
SD2W-O 12X04-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 12x04" LIST size, 16" round duct saddle.5-6 Days$197.60
SD2W-O 12X04-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 12x04" LIST size, 18" round duct saddle.5-6 Days$197.60
SD2W-O 12X06-10 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 12x06" LIST size, 10" round duct saddle.5-6 Days$210.50
SD2W-O 12X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 12x06" LIST size, 12" round duct saddle.5-6 Days$210.50
SD2W-O 12X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 12x06" LIST size, 14" round duct saddle.5-6 Days$210.50
SD2W-O 14X04-10 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x04" LIST size, 10" round duct saddle.5-6 Days$204.80
SD2W-O 14X04-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x04" LIST size, 12" round duct saddle.5-6 Days$204.80
SD2W-O 14X04-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x04" LIST size, 16" round duct saddle.5-6 Days$204.80
SD2W-O 14X06-10 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x06" LIST size, 10" round duct saddle.5-6 Days$220.80
SD2W-O 14X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x06" LIST size, 12" round duct saddle.5-6 Days$220.80
SD2W-O 14X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x06" LIST size, 14" round duct saddle.5-6 Days$220.80
SD2W-O 14X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x06" LIST size, 16" round duct saddle.5-6 Days$220.80
SD2W-O 14X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x06" LIST size, 18" round duct saddle.5-6 Days$220.80
SD2W-O 14X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x06" LIST size, 20" round duct saddle.5-6 Days$220.80
SD2W-O 14X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x08" LIST size, 12" round duct saddle.5-6 Days$241.70
SD2W-O 14X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x08" LIST size, 14" round duct saddle.5-6 Days$241.70
SD2W-O 14X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x08" LIST size, 16" round duct saddle.5-6 Days$241.70
SD2W-O 14X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 14x08" LIST size, 18" round duct saddle.5-6 Days$241.70
SD2W-O 16X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 16x06" LIST size, 12" round duct saddle.5-6 Days$232.60
SD2W-O 16X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 16x06" LIST size, 14" round duct saddle.5-6 Days$232.60
SD2W-O 16X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 16x06" LIST size, 16" round duct saddle.5-6 Days$232.60
SD2W-O 16X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 16x06" LIST size, 18" round duct saddle.5-6 Days$232.60
SD2W-O 16X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 16x08" LIST size, 12" round duct saddle.5-6 Days$261.50
SD2W-O 16X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 16x08" LIST size, 14" round duct saddle.5-6 Days$261.50
SD2W-O 16X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 16x08" LIST size, 16" round duct saddle.5-6 Days$261.50
SD2W-O 18X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 18x06" LIST size, 12" round duct saddle.5-6 Days$251.00
SD2W-O 18X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 18x06" LIST size, 14" round duct saddle.5-6 Days$251.00
SD2W-O 18X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 18x06" LIST size, 16" round duct saddle.5-6 Days$251.00
SD2W-O 18X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 18x06" LIST size, 18" round duct saddle.5-6 Days$251.00
SD2W-O 18X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 18x08" LIST size, 12" round duct saddle.5-6 Days$270.50
SD2W-O 18X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 18x08" LIST size, 14" round duct saddle.5-6 Days$270.50
SD2W-O 18X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 18x08" LIST size, 16" round duct saddle.5-6 Days$270.50
SD2W-O 18X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 18x08" LIST size, 18" round duct saddle.5-6 Days$270.50
SD2W-O 20X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x06" LIST size, 12" round duct saddle.5-6 Days$267.00
SD2W-O 20X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x06" LIST size, 14" round duct saddle.5-6 Days$267.00
SD2W-O 20X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x06" LIST size, 16" round duct saddle.5-6 Days$267.00
SD2W-O 20X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x06" LIST size, 18" round duct saddle.5-6 Days$267.00
SD2W-O 20X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x06" LIST size, 20" round duct saddle.5-6 Days$267.00
SD2W-O 20X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x08" LIST size, 12" round duct saddle.5-6 Days$278.70
SD2W-O 20X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x08" LIST size, 14" round duct saddle.5-6 Days$278.70
SD2W-O 20X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x08" LIST size, 16" round duct saddle.5-6 Days$278.70
SD2W-O 20X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x08" LIST size, 18" round duct saddle.5-6 Days$278.70
SD2W-O 20X08-20 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 20x08" LIST size, 20" round duct saddle.5-6 Days$278.70
SD2W-O 24X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 24x06" LIST size, 12" round duct saddle.5-6 Days$280.80
SD2W-O 24X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 24x06" LIST size, 14" round duct saddle.5-6 Days$280.80
SD2W-O 24X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 24x06" LIST size, 16" round duct saddle.5-6 Days$280.80
SD2W-O 24X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 24x06" LIST size, 18" round duct saddle.5-6 Days$280.80
SD2W-O 24X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 24x06" LIST size, 20" round duct saddle.5-6 Days$280.80
SD2W-O 30X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 30x08" LIST size, 12" round duct saddle.5-6 Days$348.00
SD2W-O 30X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 30x08" LIST size, 14" round duct saddle.5-6 Days$348.00
SD2W-O 30X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 30x08" LIST size, 16" round duct saddle.5-6 Days$348.00
SD2W-O 30X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 30x08" LIST size, 18" round duct saddle.5-6 Days$348.00
SD2W-O 30X08-20 TRUaire saddle mounted spiral diffuser. Double deflection, with OBD. White finish. 30x08" LIST size, 20" round duct saddle.5-6 Days$348.00
