shop by brand / TRUaire / Curved Blade Registers With Damper
product image product image product image product image
thumbnail
thumbnail
thumbnail
thumbnail
Stock Item
TRUaire / Curved Blade Registers With Damper

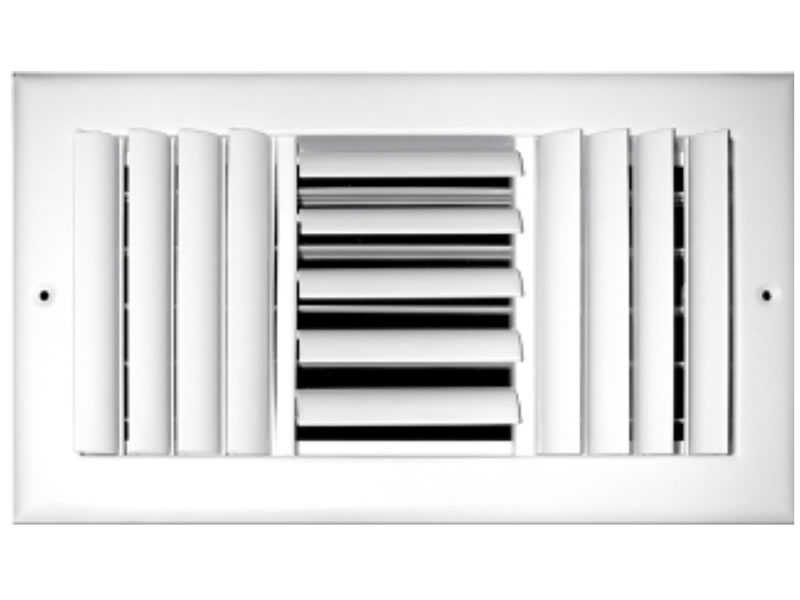

A303 Series Triple Deflection Curved Blade Grilles

white
curved blade
horizontal blade
vertical blade
ceiling
supply
wall
aluminum
rectangle

Truaire’s A300 series aluminum grilles. Individually adjustable curved blades for the ultimate in air control. These sleek diffusers are made of aluminum so they are light-weight and will not rust. You can even add the extra Opposed Blade Damper (OBD).

  • A303 = 3 way air flow pattern
  • Individually adjusting curved blades
  • Aesthetically designed on-piece frame
  • Optional OBD
  • Pristine powder-coat finish
  • Recessed screw holes

A303 = 3 way air flow pattern

TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

A303M 06X06 6x6 inch (WxH - 7.75x7.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $33.20
A303M 08X04 8x4 inch (WxH - 9.75x5.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $30.10
A303M 08X06 8x6 inch (WxH - 9.75x7.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $34.10
A303M 08X08 8x8 inch (WxH - 9.75x9.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $36.10
A303M 10X04 10x4 inch (WxH - 11.75x5.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $32.70
A303M 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $34.50
A303M 10X08 10x8 inch (WxH - 11.75x9.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $40.40
A303M 10X10 10x10 inch (WxH - 11.75x11.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $42.20
A303M 12X06 12x6 inch (WxH - 13.75x7.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $34.50
A303M 12X08 12x8 inch (WxH - 13.75x9.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $42.20
A303M 12X12 12x12 inch (WxH - 13.75x13.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $50.50
A303M 14X06 14x6 inch (WxH - 15.75x7.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $36.10
A303M 14X08 14x8 inch (WxH - 15.75x9.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $44.70
A303M 16X16 16x16 inch (WxH - 17.75x17.75 inch overall) TRUaire aluminum 3 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $70.60
Add to cart

TRUaire 303 Submittal

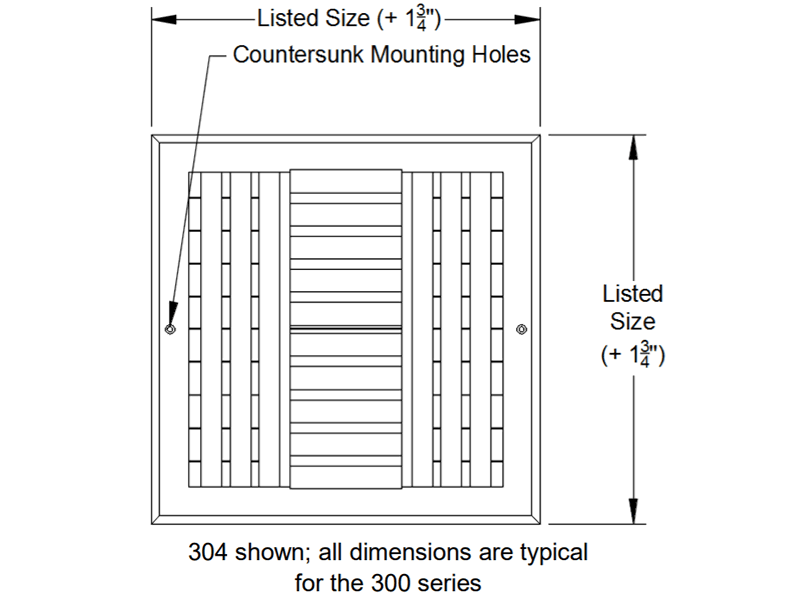

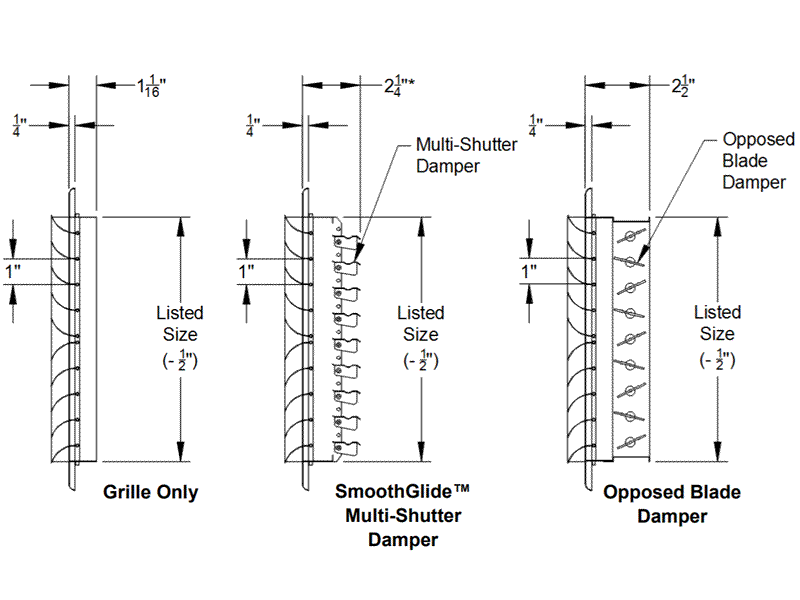

Dimensions and sizing information

TRUaire 303 Performance Data

Airflow, pressure drop and velocity data

TRUaire Full Catalog

Full PDF Catalog of TRUaire Products

How to Properly Measure Registers and Grilles

To properly measure your TRUaire registers and grilles
