Dayus / Industrial Grilles

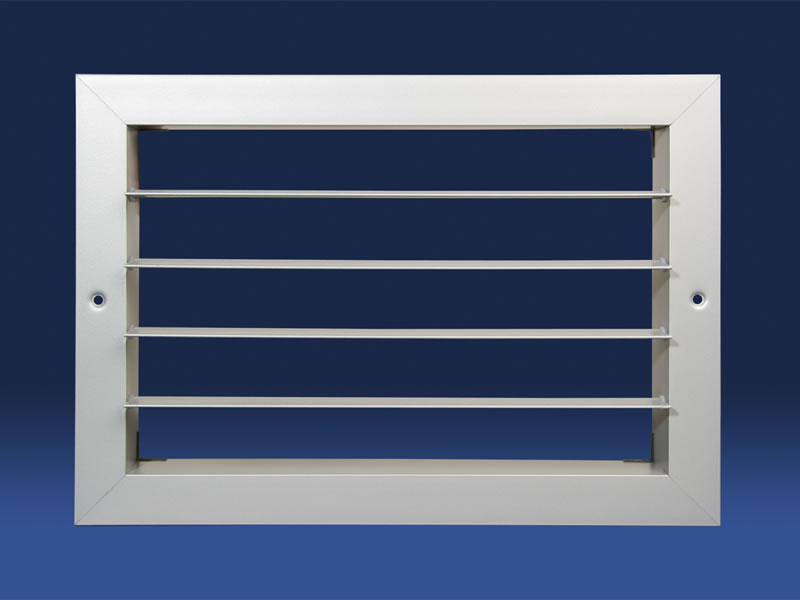

DAIGH Single Deflection Industrial Grille With Horizontal Blades

silver
white
horizontal blade
ceiling
supply
wall
aluminum
rectangle

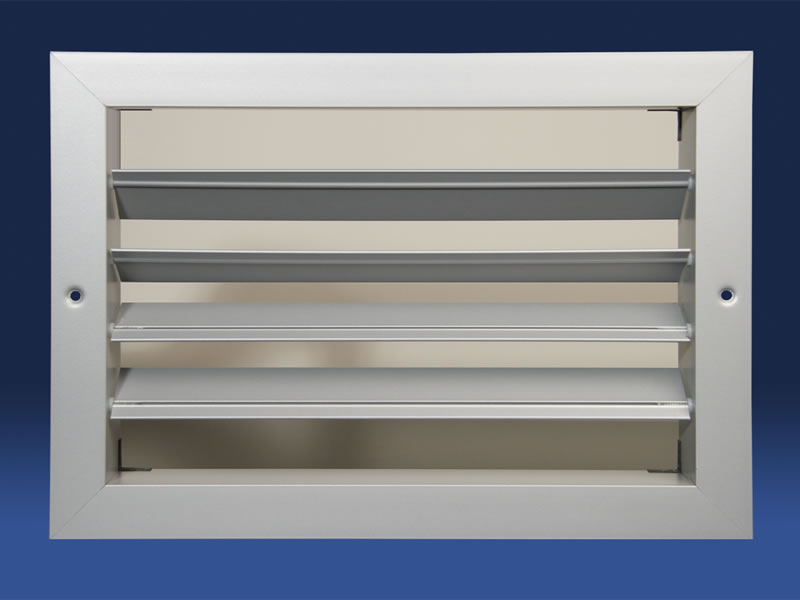

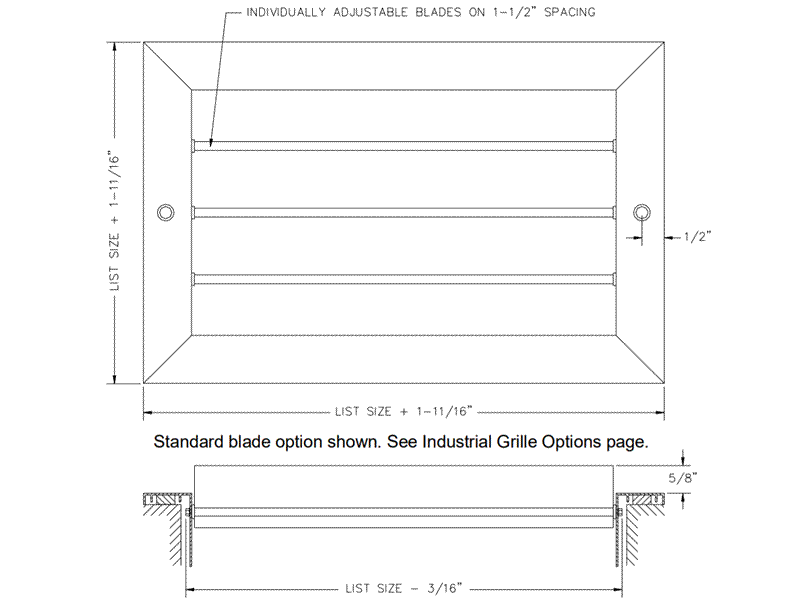

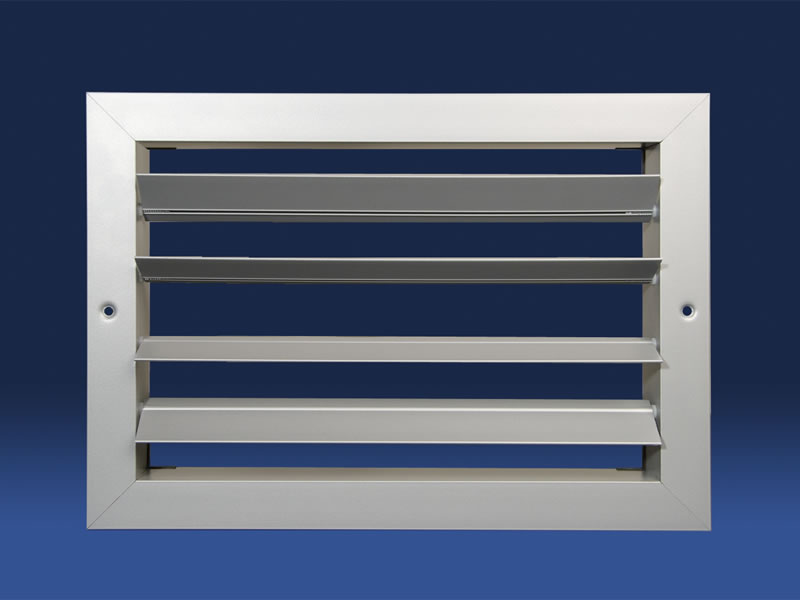

· Horizontal individually adjustable blades on 1-1/2” spacing provide a large free area
· Extruded aluminum blade with semi-airfoil design
· Aluminum extruded frame with mechanically locked corners
· Countersunk screw holes c/w painted mounting screws

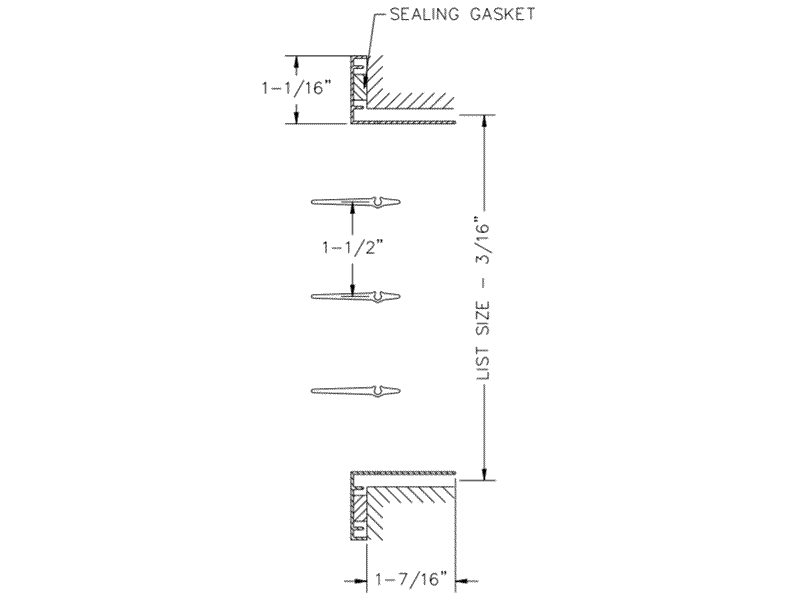

· Sealing gasket to prevent streaking of walls or ceiling
· Max blade length is 26”. Mullions used for larger sizes

Dayus products are made-to-order. They are NON-RETURNABLE.  The minimum Dayus order amount is $45 which will be reflected in the basket.  List dimensions are the hole measurements. Dayus grilles are undercut to fit inside the hole.

Friday Next Production means the order will ship not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday.
