TRUaire / T-Bar Metal Supply Diffusers

5405 Directional Corner Throw T-Bar Diffusers

white
ceiling
supply
t-bar
aluminum
steel
rectangle

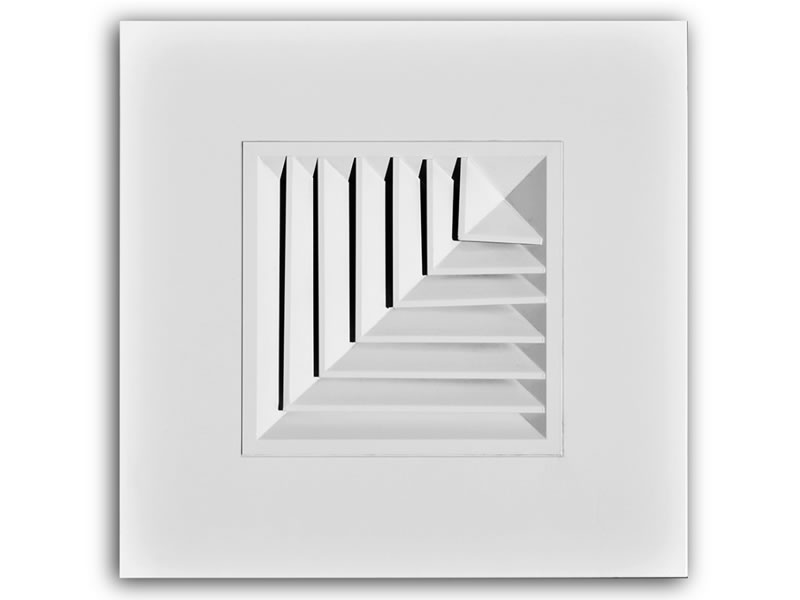

The 5400 series is an attractive T-Bar design that comes in a sleek low-profile blade arrangement, engineered to be flush with the ceiling.  This diffuser can be considered the architects first choice for small to medium sized commercial projects.  The 5405 is a 2-way CORNER throw configuration.

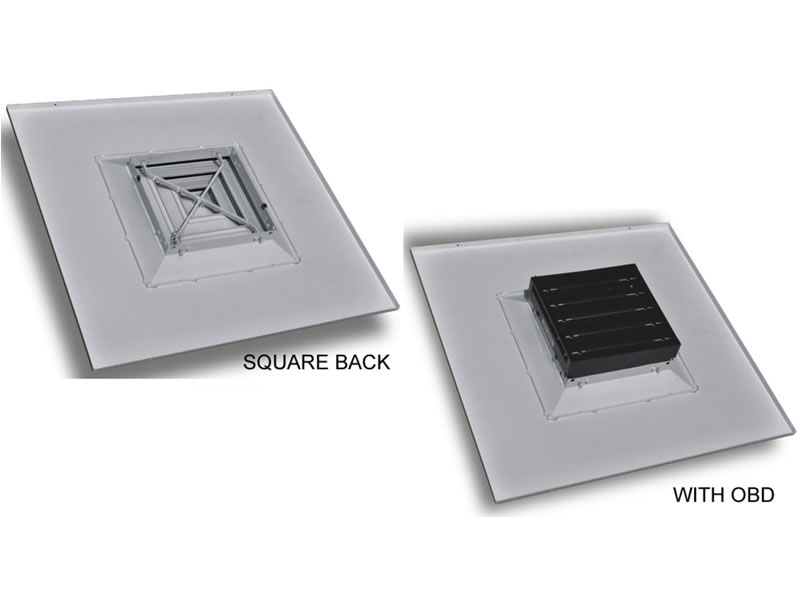

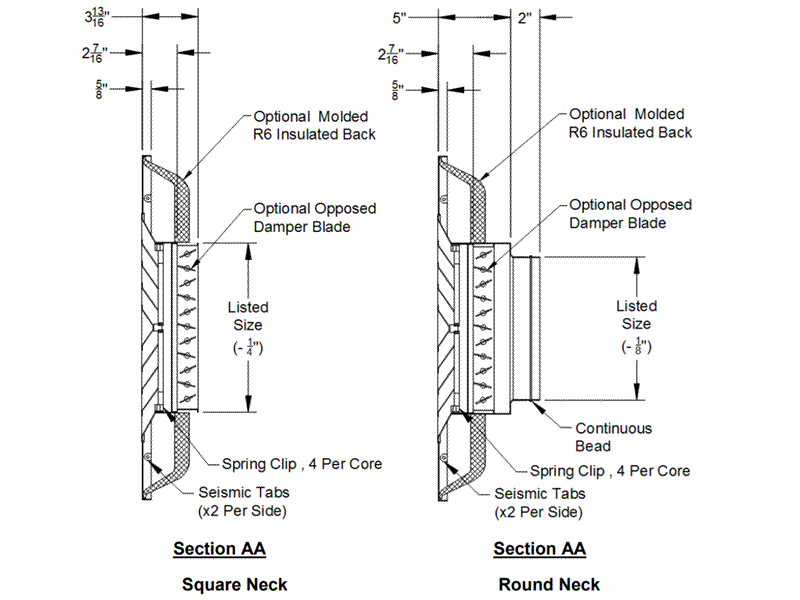

The all aluminium blade construction is available in 1, 2, 3 and 4 way throw configurations (cores easily interchangeable).  The back of the diffuser is available with a variety of square neck configurations or with a universal fibreglass back.  Optional opposed blade dampers (OBD) are also available.

SOLD IN BOX QUANTITY

TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

5405SD-RD06 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 6 inch ROUND neck. Box of 4. 5-6 Days $496.30
5405SD-RD06-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 6 inch ROUND neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $585.90
5405SDO-RD06 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 6 inch ROUND neck. OBD damper included. Box of 4. 5-6 Days $595.50
5405SDO-RD06-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 6 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $706.40
5405SD-RD09 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 9 inch ROUND neck. Box of 4. 5-6 Days $563.90
5405SD-RD09-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 9 inch ROUND neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $654.10
5405SDO-RD09 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 9 inch ROUND neck. OBD damper included. Box of 4. 5-6 Days $700.30
5405SDO-RD09-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 9 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $811.20
5405SD-RD12 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 12 inch ROUND neck. Box of 4. 5-6 Days $627.60
5405SD-RD12-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 12 inch ROUND neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $718.30
5405SDO-RD12 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 12 inch ROUND neck. OBD damper included. Box of 4. 5-6 Days $800.50
5405SDO-RD12-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 12 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $911.20
5405SD-RD15 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 15 inch ROUND neck. Box of 4. 5-6 Days $722.20
5405SD-RD15-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 15 inch ROUND neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $812.00
5405SDO-RD15 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 15 inch ROUND neck. OBD damper included. Box of 4. 5-6 Days $1,003.60
5405SDO-RD15-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 15 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $1,114.50
5405SD-RD18 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 18 inch ROUND neck. Box of 4. 5-6 Days $817.40
5405SD-RD18-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 18 inch ROUND neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $908.20
5405SDO-RD18 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 18 inch ROUND neck. OBD damper included. Box of 4. 5-6 Days $1,171.70
5405SDO-RD18-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 18 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $1,282.20
5405SD-SQ06 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 6 inch square neck. Box of 4. 5-6 Days $448.90
5405SD-SQ06-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 6 inch square neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $539.80
5405SDO-SQ06 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 6 inch square neck. OBD damper included. Box of 4. 5-6 Days $548.80
5405SDO-SQ06-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 6 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $659.80
5405SD-SQ09 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 9 inch square neck. Box of 4. 5-6 Days $492.10
5405SD-SQ09-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 9 inch square neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $582.10
5405SDO-SQ09 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 9 inch square neck. OBD damper included. Box of 4. 5-6 Days $628.40
5405SDO-SQ09-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 9 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $738.90
5405SD-SQ12 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 12 inch square neck. Box of 4. 5-6 Days $541.10
5405SD-SQ12-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 12 inch square neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $632.40
5405SDO-SQ12 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 12 inch square neck. OBD damper included. Box of 4. 5-6 Days $714.60
5405SDO-SQ12-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 12 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $824.80
5405SD-SQ15 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 15 inch square neck. Box of 4. 5-6 Days $592.60
5405SD-SQ15-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 15 inch square neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $683.40
5405SDO-SQ15 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 15 inch square neck. OBD damper included. Box of 4. 5-6 Days $873.80
5405SDO-SQ15-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 15 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $984.70
5405SD-SQ18 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 18 inch square neck. Box of 4. 5-6 Days $659.80
5405SD-SQ18-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 18 inch square neck. R6 fiberglass insulated back. Box of 4. 5-6 Days $750.60
5405SDO-SQ18 TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 18 inch square neck. OBD damper included. Box of 4. 5-6 Days $1,013.80
5405SDO-SQ18-IN TRUaire 5400 Series 2-WAY CORNER air deflection diffusers. 18 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4. 5-6 Days $1,124.90
