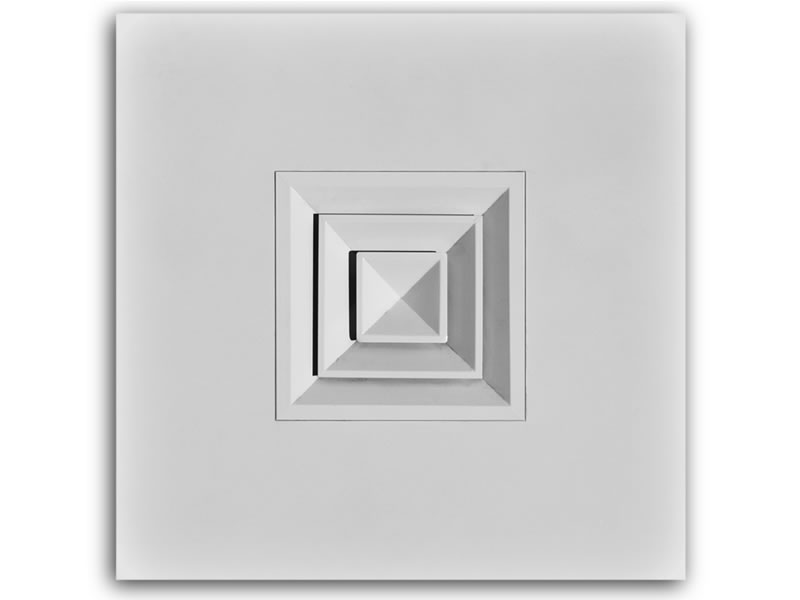

The 5400 series is an attractive T-Bar design that comes in a sleek low-profile blade arrangement, engineered to be flush with the ceiling. This diffuser can be considered the architects first choice for small to medium sized commercial projects. The 5404 is a 4-way throw configuration.

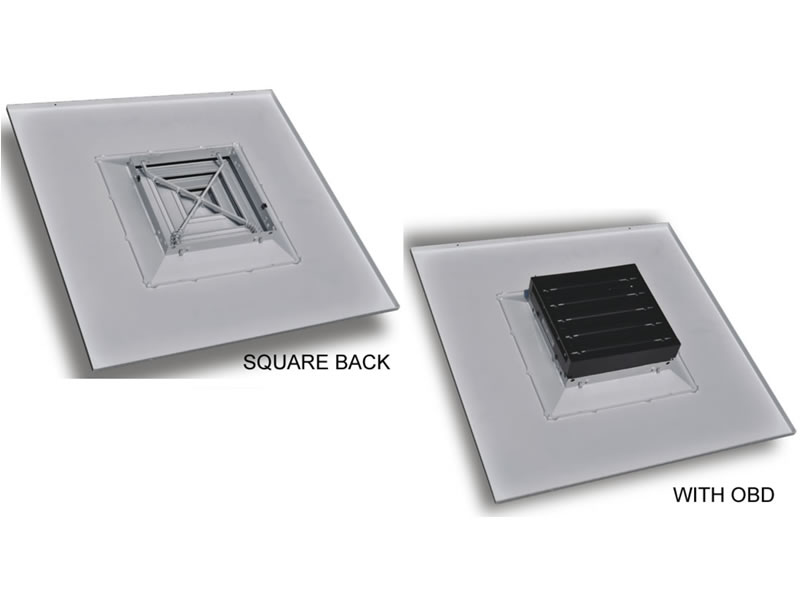

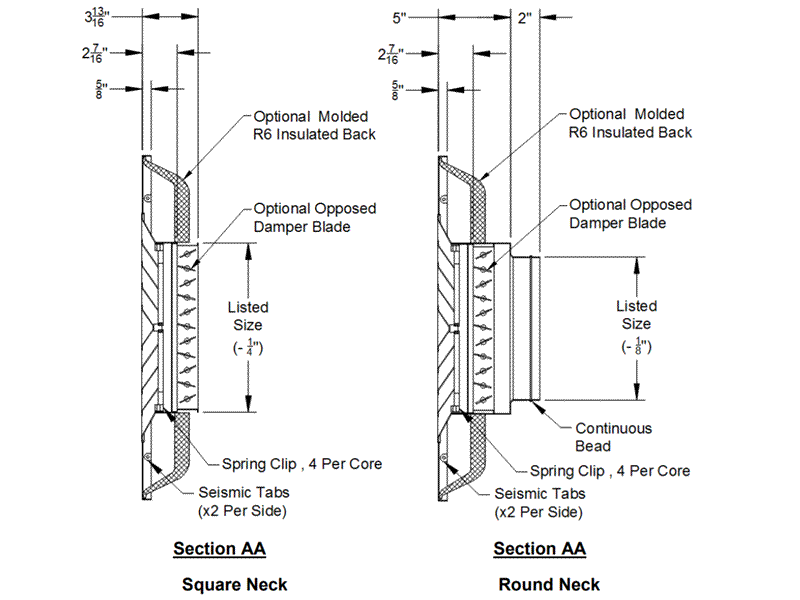

The all aluminium blade construction is available in 1, 2, 3 and 4 way throw configurations (cores easily interchangeable). The back of the diffuser is available with a variety of square neck configurations or with a universal fibreglass back. Optional opposed blade dampers (OBD) are also available.
SOLD IN BOX QUANTITY
TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.
UPS Shipping Zones
Order
Specs
Additional Videos
Model Number
Description
Ships
Unit Price
Quantity
Subtotals
5404SD-RD06TRUaire 5400 Series 4-WAY directional diffusers. 6 inch ROUND neck. Box of 4.5-6 Days$572.30
5404SD-RD06-INTRUaire 5400 Series 4-WAY directional diffusers. 6 inch ROUND neck. R6 fiberglass insulated back. Box of 4.5-6 Days$675.20
5404SDO-RD06TRUaire 5400 Series 4-WAY directional diffusers. 6 inch ROUND neck. OBD damper included. Box of 4.5-6 Days$686.00
5404SDO-RD06-INTRUaire 5400 Series 4-WAY directional diffusers. 6 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$811.50
5404SD-RD09TRUaire 5400 Series 4-WAY directional diffusers. 9 inch ROUND neck. Box of 4.5-6 Days$656.00
5404SD-RD09-INTRUaire 5400 Series 4-WAY directional diffusers. 9 inch ROUND neck. R6 fiberglass insulated back. Box of 4.5-6 Days$758.70
5404SDO-RD09TRUaire 5400 Series 4-WAY directional diffusers. 9 inch ROUND neck. OBD damper included. Box of 4.5-6 Days$810.40
5404SDO-RD09-INTRUaire 5400 Series 4-WAY directional diffusers. 9 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$936.00
5404SD-RD12TRUaire 5400 Series 4-WAY directional diffusers. 12 inch ROUND neck. Box of 4.5-6 Days$733.30
5404SD-RD12-INTRUaire 5400 Series 4-WAY directional diffusers. 12 inch ROUND neck. R6 fiberglass insulated back. Box of 4.5-6 Days$835.20
5404SDO-RD12TRUaire 5400 Series 4-WAY directional diffusers. 12 inch ROUND neck. OBD damper included. Box of 4.5-6 Days$928.30
5404SDO-RD12-INTRUaire 5400 Series 4-WAY directional diffusers. 12 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$1,054.10
5404SD-RD15TRUaire 5400 Series 4-WAY directional diffusers. 15 inch ROUND neck. Box of 4.5-6 Days$843.60
5404SD-RD15-INTRUaire 5400 Series 4-WAY directional diffusers. 15 inch ROUND neck. R6 fiberglass insulated back. Box of 4.5-6 Days$946.60
5404SDO-RD15TRUaire 5400 Series 4-WAY directional diffusers. 15 inch ROUND neck. OBD damper included. Box of 4.5-6 Days$1,164.20
5404SDO-RD15-INTRUaire 5400 Series 4-WAY directional diffusers. 15 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$1,289.10
5404SD-RD18TRUaire 5400 Series 4-WAY directional diffusers. 18 inch ROUND neck. Box of 4.5-6 Days$957.20
5404SD-RD18-INTRUaire 5400 Series 4-WAY directional diffusers. 18 inch ROUND neck. R6 fiberglass insulated back. Box of 4.5-6 Days$1,059.30
5404SDO-RD18TRUaire 5400 Series 4-WAY directional diffusers. 18 inch ROUND neck. OBD damper included. Box of 4.5-6 Days$1,360.00
5404SDO-RD18-INTRUaire 5400 Series 4-WAY directional diffusers. 18 inch ROUND neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$1,485.60
5404SD-SQ06TRUaire 5400 Series 4-WAY directional diffusers. 6 inch square neck. Box of 4.5-6 Days$519.40
5404SD-SQ06-INTRUaire 5400 Series 4-WAY directional diffusers. 6 inch square neck. R6 fiberglass insulated back. Box of 4.5-6 Days$622.40
5404SDO-SQ06TRUaire 5400 Series 4-WAY directional diffusers. 6 inch square neck. OBD damper included. Box of 4.5-6 Days$633.50
5404SDO-SQ06-INTRUaire 5400 Series 4-WAY directional diffusers. 6 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$758.70
5404SD-SQ09TRUaire 5400 Series 4-WAY directional diffusers. 9 inch square neck. Box of 4.5-6 Days$573.90
5404SD-SQ09-INTRUaire 5400 Series 4-WAY directional diffusers. 9 inch square neck. R6 fiberglass insulated back. Box of 4.5-6 Days$677.40
5404SDO-SQ09TRUaire 5400 Series 4-WAY directional diffusers. 9 inch square neck. OBD damper included. Box of 4.5-6 Days$729.10
5404SDO-SQ09-INTRUaire 5400 Series 4-WAY directional diffusers. 9 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$854.40
5404SD-SQ12TRUaire 5400 Series 4-WAY directional diffusers. 12 inch square neck. Box of 4.5-6 Days$635.30
5404SD-SQ12-INTRUaire 5400 Series 4-WAY directional diffusers. 12 inch square neck. R6 fiberglass insulated back. Box of 4.5-6 Days$737.60
5404SDO-SQ12TRUaire 5400 Series 4-WAY directional diffusers. 12 inch square neck. OBD damper included. Box of 4.5-6 Days$830.90
5404SDO-SQ12-INTRUaire 5400 Series 4-WAY directional diffusers. 12 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$956.10
5404SD-SQ15TRUaire 5400 Series 4-WAY directional diffusers. 15 inch square neck. Box of 4.5-6 Days$697.70
5404SD-SQ15-INTRUaire 5400 Series 4-WAY directional diffusers. 15 inch square neck. R6 fiberglass insulated back. Box of 4.5-6 Days$799.40
5404SDO-SQ15TRUaire 5400 Series 4-WAY directional diffusers. 15 inch square neck. OBD damper included. Box of 4.5-6 Days$1,017.50
5404SDO-SQ15-INTRUaire 5400 Series 4-WAY directional diffusers. 15 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$1,143.20
5404SD-SQ18TRUaire 5400 Series 4-WAY directional diffusers. 18 inch square neck. Box of 4.5-6 Days$778.20
5404SD-SQ18-INTRUaire 5400 Series 4-WAY directional diffusers. 18 inch square neck. R6 fiberglass insulated back. Box of 4.5-6 Days$880.10
5404SDO-SQ18TRUaire 5400 Series 4-WAY directional diffusers. 18 inch square neck. OBD damper included. Box of 4.5-6 Days$1,180.90
5404SDO-SQ18-INTRUaire 5400 Series 4-WAY directional diffusers. 18 inch square neck. R6 fiberglass insulated back and OBD damper included. Box of 4.5-6 Days$1,306.10
