architectural & commercial / Straight Blade Grilles / Supply Blade Registers
product image product image product image product image product image
thumbnail
thumbnail
thumbnail
thumbnail
thumbnail
Stock Item
TRUaire / Supply Blade Registers

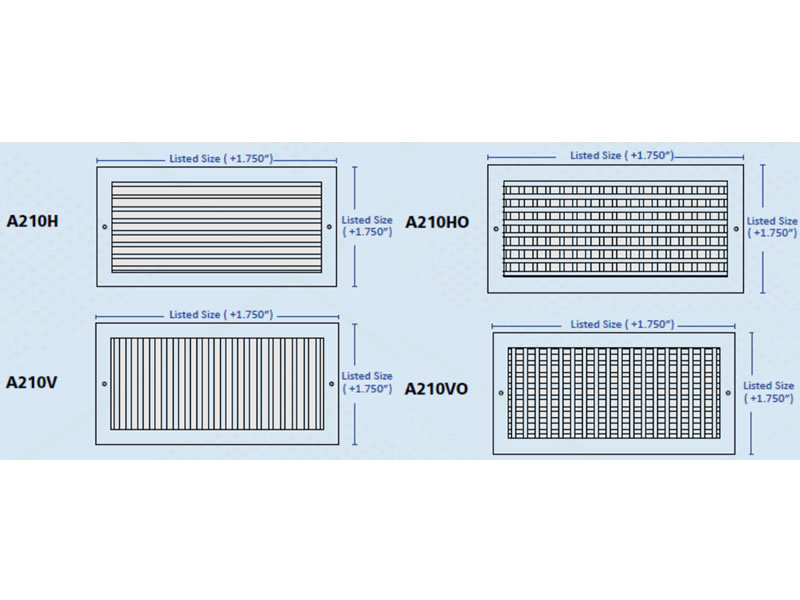

A210 Series Aluminum Single Deflection Adjustable Bar Grilles With Damper

white
adjustable damper
horizontal blade
louver blades
vertical blade
ceiling
supply
wall
aluminum
rectangle

The A210 Series Aluminum Single Deflection grille/register is available in a wide variety of configurations for almost any application. The highly effective open blade design and TRUAIRE’s exclusive one piece frame allows for greater airflow.

Available with the SmoothGlide multi-shutter damper mechanism or a high quality opposed blade damper mechanism.

  • Single deflection adjustable horizontal or vertical airfoil blades
  • Aluminum construction
  • With multi-shutter or opposed blade damper
  • Durable white powder coat finish
  • For side wall or ceilings

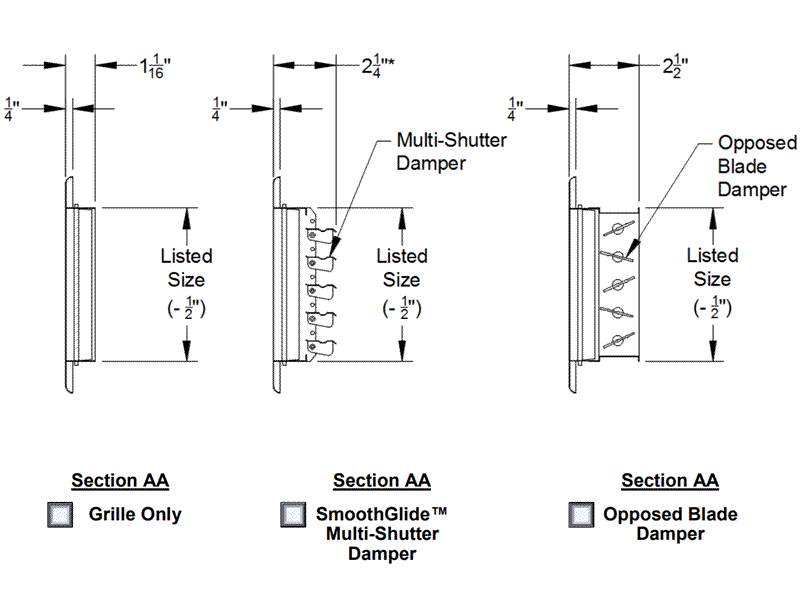

Multi-shutter or opposed blade damper.

TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

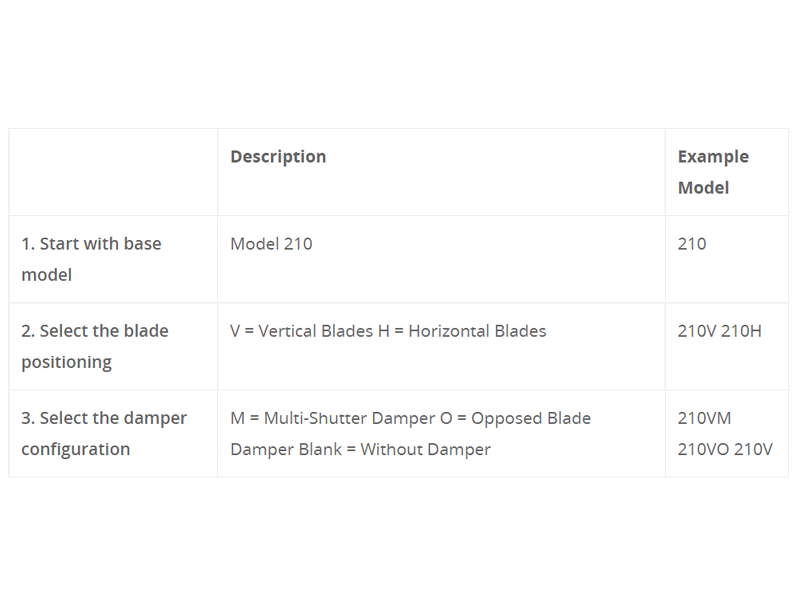

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

A210VM 06X04 6x4 inch (WxH - 7.75x5.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $28.90
A210VM 06X06 6x6 inch (WxH - 7.75x7.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $34.10
A210VM 08X04 8x4 inch (WxH - 9.75x5.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $30.30
A210VM 08X06 8x6 inch (WxH - 9.75x7.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $31.80
A210VM 10X04 10x4 inch (WxH - 11.75x5.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $31.80
A210VM 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $35.50
A210VO 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with OBD damper. 1 Day. In-stock $42.60
A210VM 10X08 10x8 inch (WxH - 11.75x9.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $37.00
A210VM 10X10 10x10 inch (WxH - 11.75x11.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $38.90
A210VM 12X04 12x4 inch (WxH - 13.75x5.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $35.50
A210VM 12X06 12x6 inch (WxH - 13.75x7.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $37.00
A210VM 12X08 12x8 inch (WxH - 13.75x9.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $40.70
A210VM 12X10 12x10 inch (WxH - 13.75x11.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $42.20
A210VM 12X12 12x12 inch (WxH - 13.75x13.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $45.90
A210VM 14X04 14x4 inch (WxH - 15.75x5.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $37.00
A210VM 14X06 14x6 inch (WxH - 15.75x7.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $40.70
A210VO 14X06 14x6 inch (WxH - 15.75x7.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with OBD damper. 1 Day. In-stock $49.50
A210VM 14X08 14x8 inch (WxH - 15.75x9.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $42.20
A210VM 14X10 14x10 inch (WxH - 15.75x11.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $45.90
A210VM 14X12 14x12 inch (WxH - 15.75x13.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $49.30
A210VM 14X14 14x14 inch (WxH - 15.75x15.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $53.00
A210VM 16X04 16x4 inch (WxH - 17.75x5.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $38.90
A210VM 16X06 16x6 inch (WxH - 17.75x7.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $42.20
A210VM 16X08 16x8 inch (WxH - 17.75x9.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $45.90
A210VM 16X10 16x10 inch (WxH - 17.75x11.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $49.30
A210VM 16X16 16x16 inch (WxH - 17.75x17.75 inch overall) TRUaire aluminum single deflection bar grille. VERTICAL blades with multi-shutter damper. 1 Day. In-stock $80.70
Add to cart

TRUaire 210 Submittal

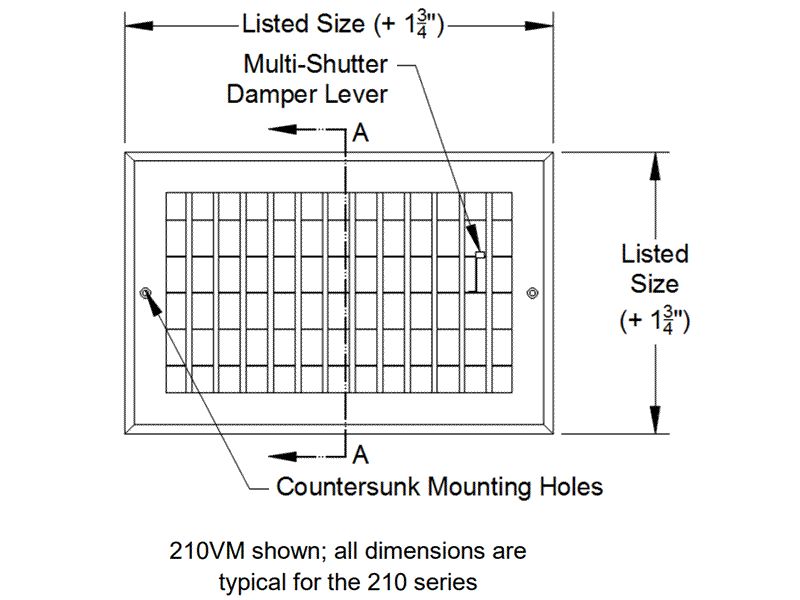

Dimensions and sizing information

TRUaire 210 Performance Data

Airflow, pressure drop and velocity data

TRUaire 210 Catalog

Catalog Sheet

TRUaire Full Catalog

Full PDF Catalog of TRUaire Products

How to Properly Measure Registers and Grilles

To properly measure your TRUaire registers and grilles
