Stock Item
TRUaire / Supply Blade Grilles

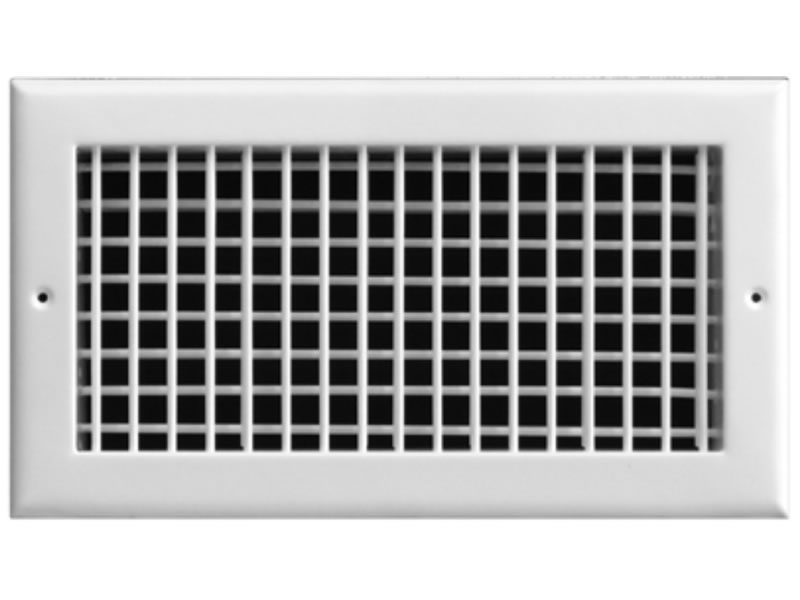

A220 Series Aluminum Double Deflection Adjustable Bar Grilles No Damper

white
horizontal blade
louver blades
vertical blade
ceiling
supply
wall
aluminum
rectangle

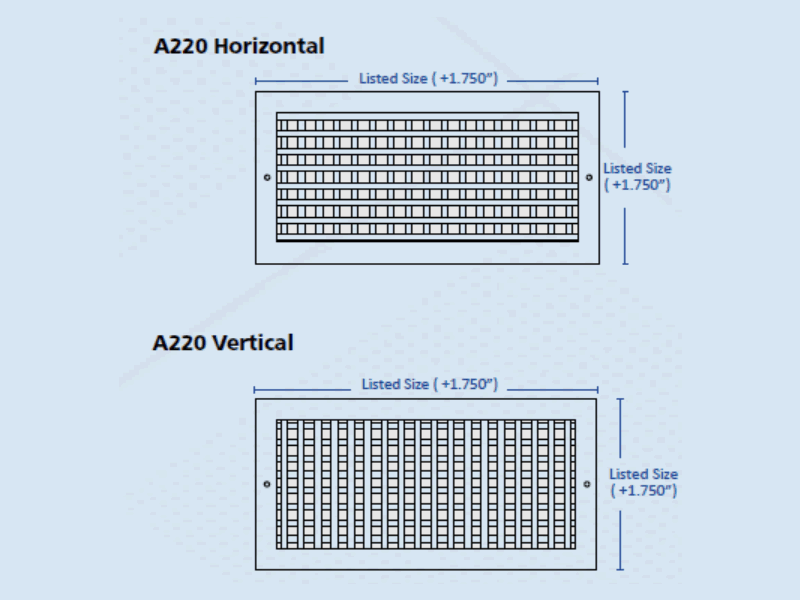

TruAire’s 220 Series Double-Deflection grilles/registers represent the top-of-the line adjustable bar-type product. These registers feature two perpendicular rows of individually adjustable Airfoil bars for maximum airflow control. They can be ordered with the horizontal row in front, (220H), or with the vertical row in front, (220V).

  • Double deflection adjustable bars
  • Aluminum construction
  • No damper
  • Durable white powder coat finish

No damper version.

TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

A220V 10X04 10x4 inch (WxH - 11.75x5.75 inch overall) TRUaire aluminum double deflection bar grille. VERTICAL front blades. 1 Day. In-stock $50.20
A220V 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire aluminum double deflection bar grille. VERTICAL front blades. 1 Day. In-stock $54.90
A220V 10X08 10x8 inch (WxH - 11.75x9.75 inch overall) TRUaire aluminum double deflection bar grille. VERTICAL front blades. 1 Day. In-stock $57.70
A220V 12X04 12x4 inch (WxH - 13.75x5.75 inch overall) TRUaire aluminum double deflection bar grille. VERTICAL front blades. 1 Day. In-stock $55.00
A220V 12X06 12x6 inch (WxH - 13.75x7.75 inch overall) TRUaire aluminum double deflection bar grille. VERTICAL front blades. 1 Day. In-stock $57.10
A220V 14X06 14x6 inch (WxH - 15.75x7.75 inch overall) TRUaire aluminum double deflection bar grille. VERTICAL front blades. 1 Day. In-stock $59.90
A220V 14X10 14x10 inch (WxH - 15.75x11.75 inch overall) TRUaire aluminum double deflection bar grille. VERTICAL front blades. 1 Day. In-stock $66.80
