Made to Order
Dayus / Supply Blade Grilles

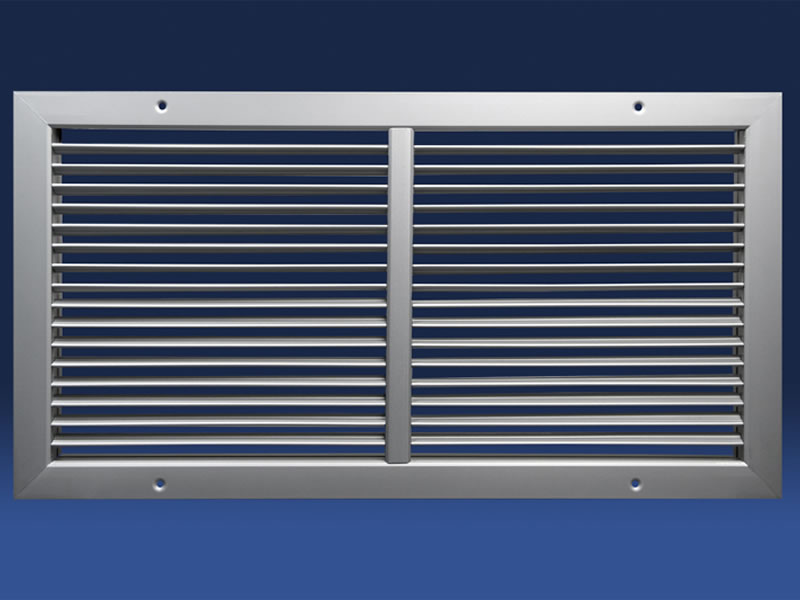

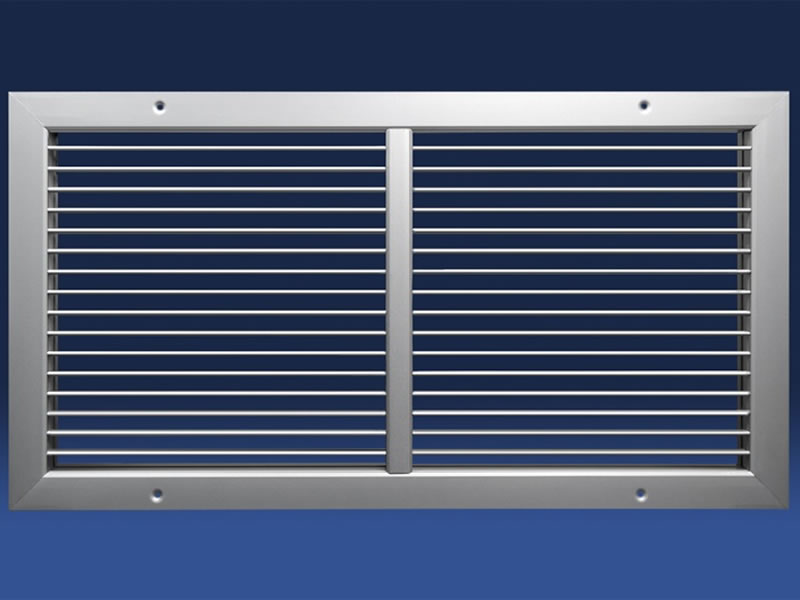

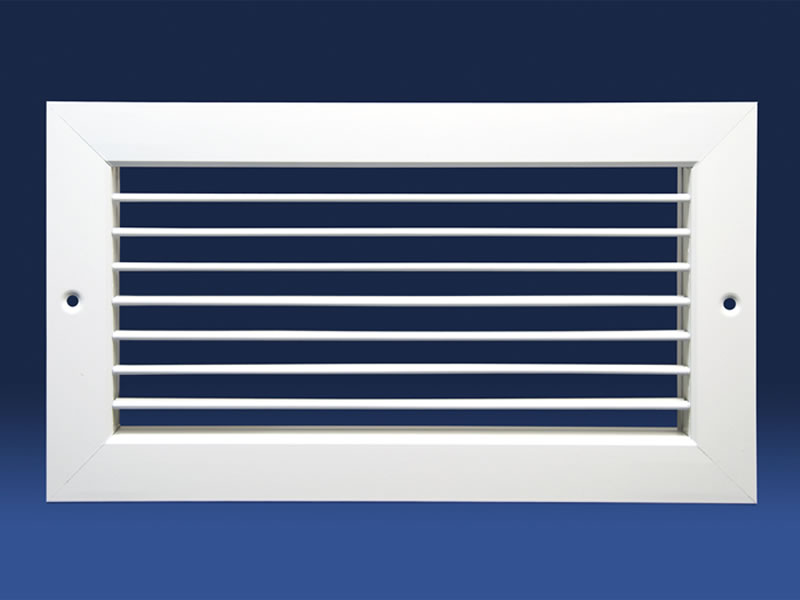

DAH Single Deflection Supply Grille With Horizontal Blades

mill
silver
white
horizontal blade
ceiling
supply
wall
aluminum
rectangle

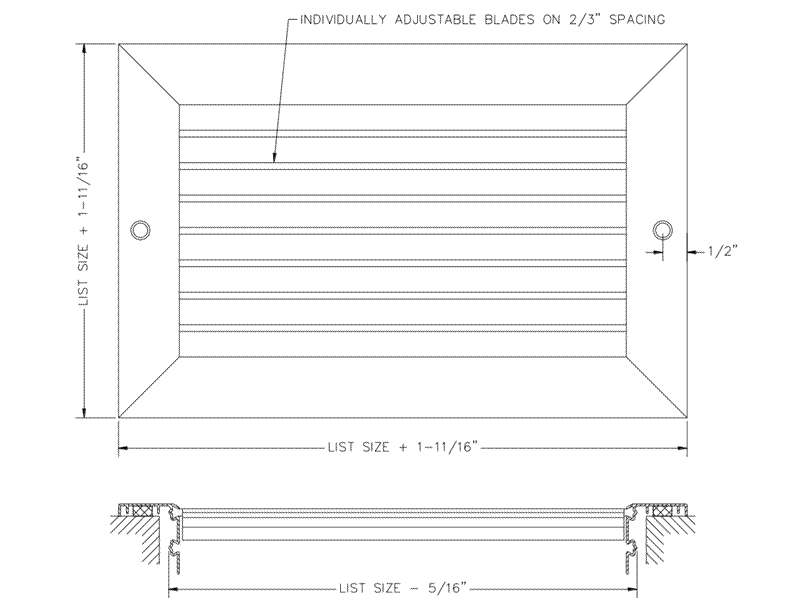

· Horizontal individually-adjustable blades on 2/3” spacing
· Aluminum rollformed blade with semi-airfoil design
· Pressure fit nylon pivot pins (rattle free & non loosening)
· Aluminum extruded frame with mechanically locked corners
· Countersunk screw holes c/w painted mounting screws

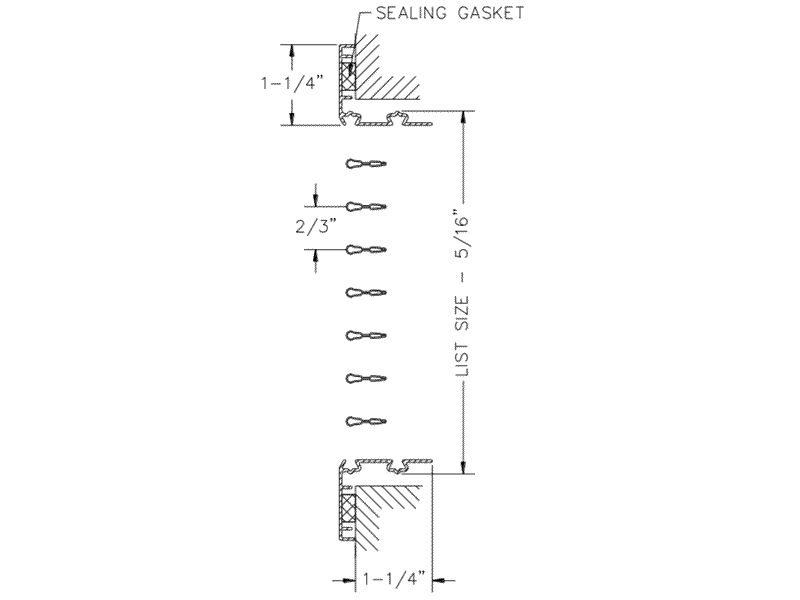

· Sealing gasket to prevent streaking on walls or ceiling
· Max blade length is 18”. Mullions used for larger sizes
· Durable powdercoat painted finish

Dayus products are made-to-order. They are NON-RETURNABLE.  The minimum Dayus order amount is $45 which will be reflected in the basket.  List dimensions are the hole measurements. Dayus grilles are undercut to fit inside the hole.

Friday Next Production means the order will ship not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday.
