architectural & commercial / Spiral Duct Diffusers / Spiral Diffusers with Saddle
product image product image product image
thumbnail
thumbnail
thumbnail
Stock Item
TRUaire / Spiral Diffusers with Saddle

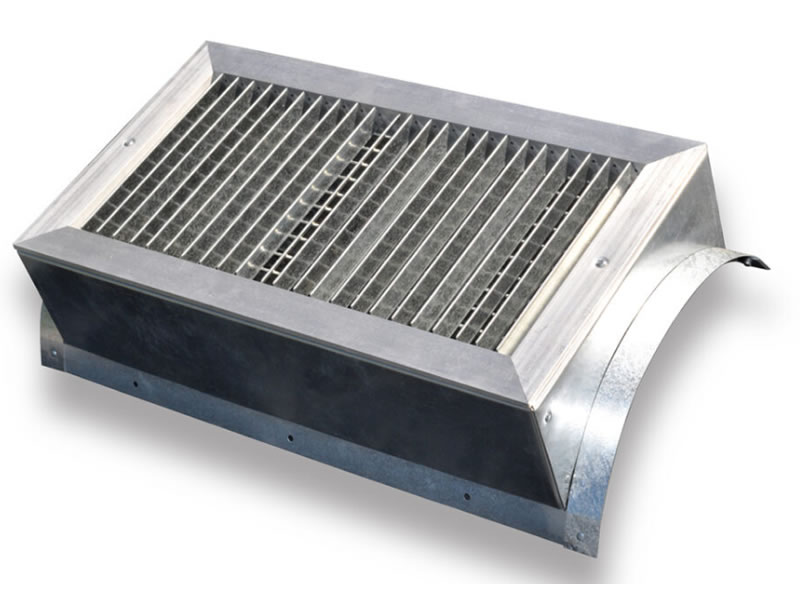

SD2A-S Saddle Mounted Spiral Diffusers With Scoop Aluminum Finish

mill
unpainted
spiral duct
aluminum
steel
rectangle

Spiral SD2A-S Duct Diffusers were born of the rustic exposed ceiling era in architectural design. Wherever air needs to leave ductwork and enter the conditioned space a hole is cut in the duct. A register is then attached for directional air control and aesthetics. The saddle type diffuser is available in either single deflection or double deflection blade configurations.

  • Unfinished aluminum appearance
  • Double deflection configuration

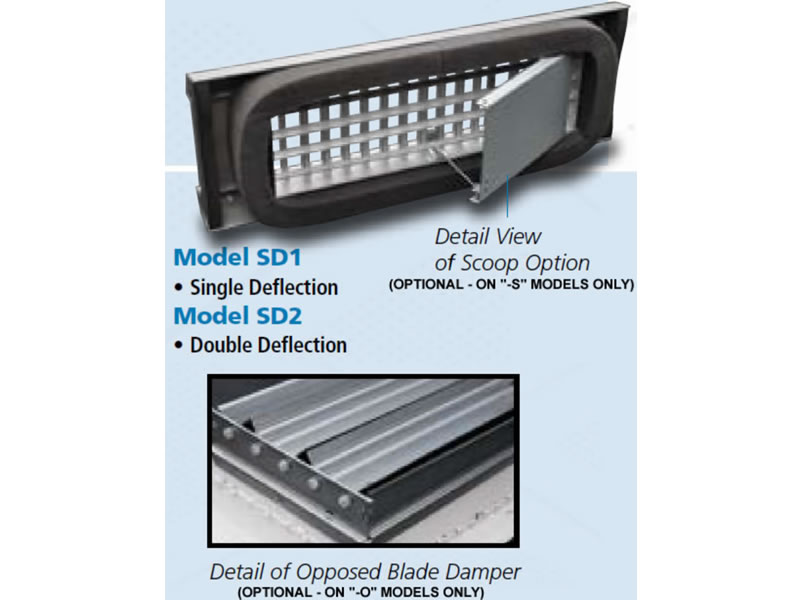

  • Includes adjustable air scoop
  • No damper
  • Saddle curved to fit duct radius
  • Adjustable bars on grille face

LIST SIZE is the size of the duct opening.  See submittal sheet for actual grille dimensions.

TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

SD2A-S 10X04-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 10x04" LIST size, 10" round duct saddle. 5-6 Days $169.90
SD2A-S 10X04-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 10x04" LIST size, 12" round duct saddle. 5-6 Days $169.90
SD2A-S 10X06-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 10x06" LIST size, 10" round duct saddle. 5-6 Days $182.80
SD2A-S 10X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 10x06" LIST size, 12" round duct saddle. 5-6 Days $182.80
SD2A-S 10X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 10x06" LIST size, 14" round duct saddle. 5-6 Days $182.80
SD2A-S 10X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 10x06" LIST size, 16" round duct saddle. 5-6 Days $182.80
SD2A-S 10X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 10x06" LIST size, 18" round duct saddle. 5-6 Days $182.80
SD2A-S 10X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 10x06" LIST size, 20" round duct saddle. 5-6 Days $182.80
SD2A-S 12X04-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x04" LIST size, 10" round duct saddle. 5-6 Days $177.20
SD2A-S 12X04-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x04" LIST size, 12" round duct saddle. 5-6 Days $177.20
SD2A-S 12X04-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x04" LIST size, 14" round duct saddle. 5-6 Days $177.20
SD2A-S 12X04-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x04" LIST size, 16" round duct saddle. 5-6 Days $177.20
SD2A-S 12X04-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x04" LIST size, 18" round duct saddle. 5-6 Days $177.20
SD2A-S 12X04-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x04" LIST size, 20" round duct saddle. 5-6 Days $177.20
SD2A-S 12X06-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x06" LIST size, 10" round duct saddle. 5-6 Days $187.50
SD2A-S 12X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x06" LIST size, 12" round duct saddle. 5-6 Days $187.50
SD2A-S 12X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x06" LIST size, 14" round duct saddle. 5-6 Days $187.50
SD2A-S 12X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x06" LIST size, 16" round duct saddle. 5-6 Days $187.50
SD2A-S 12X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 12x06" LIST size, 18" round duct saddle. 5-6 Days $187.50
SD2A-S 14X04-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x04" LIST size, 10" round duct saddle. 5-6 Days $181.60
SD2A-S 14X04-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x04" LIST size, 12" round duct saddle. 5-6 Days $181.60
SD2A-S 14X04-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x04" LIST size, 16" round duct saddle. 5-6 Days $181.60
SD2A-S 14X06-10 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x06" LIST size, 10" round duct saddle. 5-6 Days $193.20
SD2A-S 14X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x06" LIST size, 12" round duct saddle. 5-6 Days $193.20
SD2A-S 14X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x06" LIST size, 14" round duct saddle. 5-6 Days $193.20
SD2A-S 14X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x06" LIST size, 16" round duct saddle. 5-6 Days $193.20
SD2A-S 14X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x06" LIST size, 18" round duct saddle. 5-6 Days $193.20
SD2A-S 14X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x06" LIST size, 20" round duct saddle. 5-6 Days $193.20
SD2A-S 14X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x08" LIST size, 12" round duct saddle. 5-6 Days $204.50
SD2A-S 14X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x08" LIST size, 14" round duct saddle. 5-6 Days $204.50
SD2A-S 14X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x08" LIST size, 16" round duct saddle. 5-6 Days $204.50
SD2A-S 14X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 14x08" LIST size, 18" round duct saddle. 5-6 Days $204.50
SD2A-S 16X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 16x06" LIST size, 12" round duct saddle. 5-6 Days $211.10
SD2A-S 16X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 16x06" LIST size, 16" round duct saddle. 5-6 Days $211.10
SD2A-S 16X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 16x06" LIST size, 18" round duct saddle. 5-6 Days $211.10
SD2A-S 16X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 16x08" LIST size, 12" round duct saddle. 5-6 Days $231.00
SD2A-S 16X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 16x08" LIST size, 14" round duct saddle. 5-6 Days $231.00
SD2A-S 16X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 16x08" LIST size, 16" round duct saddle. 5-6 Days $231.00
SD2A-S 18X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 18x06" LIST size, 12" round duct saddle. 5-6 Days $220.60
SD2A-S 18X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 18x06" LIST size, 14" round duct saddle. 5-6 Days $220.60
SD2A-S 18X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 18x06" LIST size, 16" round duct saddle. 5-6 Days $220.60
SD2A-S 18X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 18x06" LIST size, 18" round duct saddle. 5-6 Days $220.60
SD2A-S 18X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 18x08" LIST size, 12" round duct saddle. 5-6 Days $237.50
SD2A-S 18X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 18x08" LIST size, 14" round duct saddle. 5-6 Days $237.50
SD2A-S 18X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 18x08" LIST size, 16" round duct saddle. 5-6 Days $237.50
SD2A-S 18X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 18x08" LIST size, 18" round duct saddle. 5-6 Days $237.50
SD2A-S 18X08-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 18x08" LIST size, 20" round duct saddle. 5-6 Days $237.50
SD2A-S 20X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x06" LIST size, 12" round duct saddle. 5-6 Days $233.60
SD2A-S 20X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x06" LIST size, 14" round duct saddle. 5-6 Days $233.60
SD2A-S 20X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x06" LIST size, 16" round duct saddle. 5-6 Days $233.60
SD2A-S 20X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x06" LIST size, 18" round duct saddle. 5-6 Days $233.60
SD2A-S 20X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x06" LIST size, 20" round duct saddle. 5-6 Days $233.60
SD2A-S 20X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x08" LIST size, 12" round duct saddle. 5-6 Days $241.00
SD2A-S 20X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x08" LIST size, 14" round duct saddle. 5-6 Days $241.00
SD2A-S 20X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x08" LIST size, 16" round duct saddle. 5-6 Days $241.00
SD2A-S 20X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x08" LIST size, 18" round duct saddle. 5-6 Days $241.00
SD2A-S 20X08-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 20x08" LIST size, 20" round duct saddle. 5-6 Days $241.00
SD2A-S 24X06-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 24x06" LIST size, 12" round duct saddle. 5-6 Days $248.50
SD2A-S 24X06-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 24x06" LIST size, 14" round duct saddle. 5-6 Days $248.50
SD2A-S 24X06-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 24x06" LIST size, 16" round duct saddle. 5-6 Days $248.50
SD2A-S 24X06-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 24x06" LIST size, 18" round duct saddle. 5-6 Days $248.50
SD2A-S 24X06-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 24x06" LIST size, 20" round duct saddle. 5-6 Days $248.50
SD2A-S 30X08-12 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 30x08" LIST size, 12" round duct saddle. 5-6 Days $286.60
SD2A-S 30X08-14 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 30x08" LIST size, 14" round duct saddle. 5-6 Days $286.60
SD2A-S 30X08-16 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 30x08" LIST size, 16" round duct saddle. 5-6 Days $286.60
SD2A-S 30X08-18 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 30x08" LIST size, 18" round duct saddle. 5-6 Days $286.60
SD2A-S 30X08-20 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 30x08" LIST size, 20" round duct saddle. 5-6 Days $286.60
SD2A-S 30X08-24 TRUaire saddle mounted spiral diffuser. Double deflection, with SCOOP. Aluminum finish. 30x08" LIST size, 24" round duct saddle. 5-6 Days $286.60
Add to cart

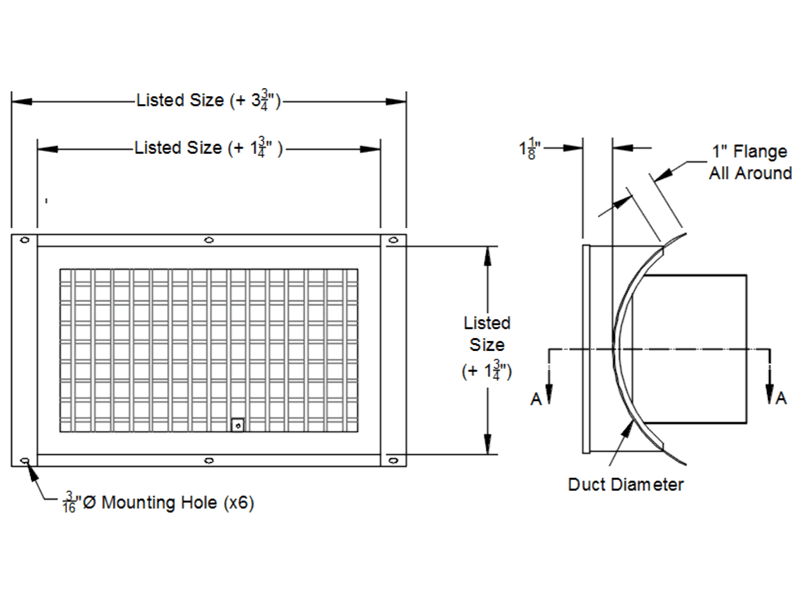

TRUaire SD2 Submittal

Dimensions and sizing information

TRUaire SD2 Performance Data

Airflow, pressure drop and velocity data

TRUaire SD Catalog

Catalog Sheet

TRUaire Full Catalog

Full PDF Catalog of TRUaire Products
