TRUaire / Curved Blade Registers With Damper

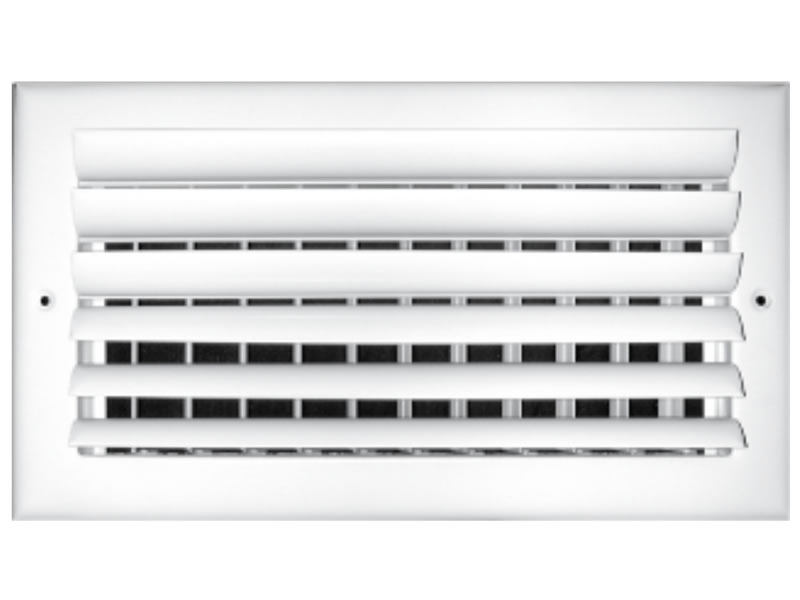

A302 Series Double Deflection Curved Blade Grilles

white
curved blade
horizontal blade
vertical blade
ceiling
supply
wall
aluminum
rectangle

Truaire’s A300 series aluminum grilles. Individually adjustable curved blades for the ultimate in air control. These sleek diffusers are made of aluminum so they are light-weight and will not rust. You can even add the extra Opposed Blade Damper (OBD).

  • A302 = 2 way air flow pattern
  • Individually adjusting curved blades
  • Aesthetically designed on-piece frame
  • Optional OBD
  • Pristine powder-coat finish
  • Recessed screw holes

A302 = 2 way air flow pattern

TRUaire grilles ship from their CA and TX warehouses. Large quantities are typically available.

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Additional Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

A302HM 06X04 6x4 inch (WxH - 7.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $25.80
A302HM 06X06 6x6 inch (WxH - 7.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $28.30
A302HM 08X04 8x4 inch (WxH - 9.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $25.80
A302HM 08X06 8x6 inch (WxH - 9.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $28.90
A302HM 08X08 8x8 inch (WxH - 9.75x9.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $30.60
A302HM 10X04 10x4 inch (WxH - 11.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $27.40
A302HM 10X06 10x6 inch (WxH - 11.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $29.10
A302HM 10X08 10x8 inch (WxH - 11.75x9.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $34.10
A302HM 10X10 10x10 inch (WxH - 11.75x11.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $35.50
A302HM 12X04 12x4 inch (WxH - 13.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $28.30
A302HM 12X06 12x6 inch (WxH - 13.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $29.10
A302HM 12X08 12x8 inch (WxH - 13.75x9.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $35.50
A302HM 12X10 12x10 inch (WxH - 13.75x11.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $38.00
A302HM 12X12 12x12 inch (WxH - 13.75x13.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $41.80
A302HM 14X04 14x4 inch (WxH - 15.75x5.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $28.90
A302HM 14X06 14x6 inch (WxH - 15.75x7.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $30.60
A302HM 14X08 14x8 inch (WxH - 15.75x9.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $37.00
A302HM 14X10 14x10 inch (WxH - 15.75x11.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $40.60
A302HM 14X14 14x14 inch (WxH - 15.75x15.75 inch overall) TRUaire aluminum 2 way curved grille. HORIZONTAL blades with damper. 1 Day. In-stock $49.30
