Dayus / Curved Blade Grilles

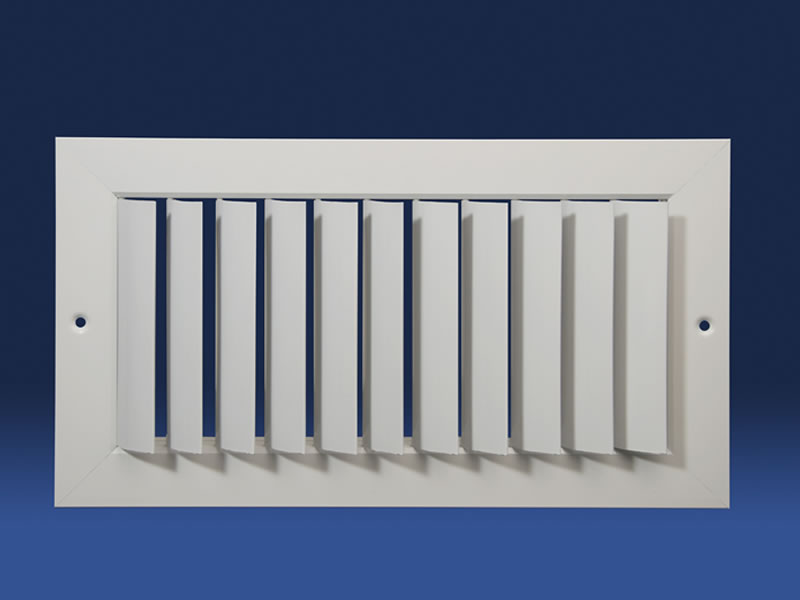

DAC1V 1 Way Curved Blade Supply Grille with Vertical Adjustable Blades

silver
white
curved blade
louver blades
vertical blade
ceiling
supply
wall
aluminum
rectangle

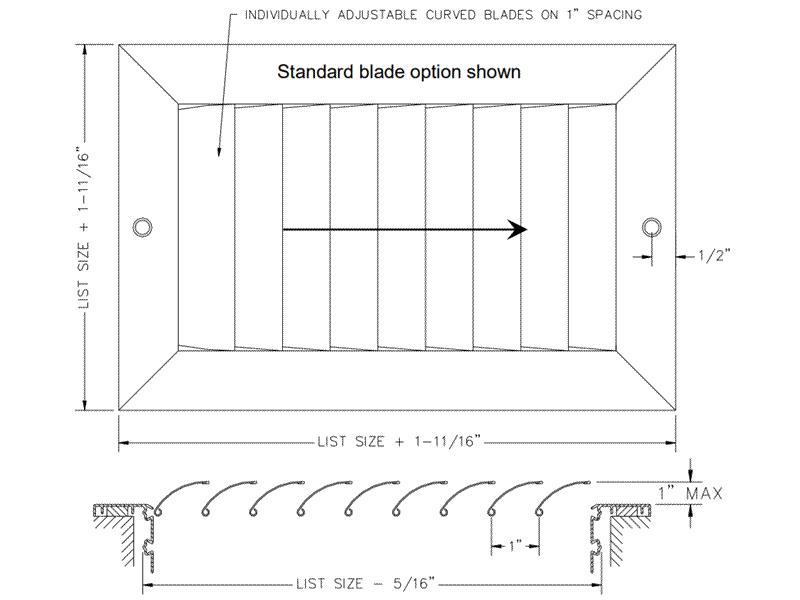

· Vertical individually adjustable curved blades on 1” spacing allows a wider spread of air to be achieved
· Rollformed aluminum blade installed in an extruded aluminum frame
· Countersunk screwholes c/w painted mounting screws
· Sealing gasket to prevent steaking of walls or ceiling
· Max blade length is 22”. Mullions used for larger sizes
· Durable powdercoat painted finish

Dayus products are made-to-order. They are NON-RETURNABLE.  The minimum Dayus order amount is $45 which will be reflected in the basket.  List dimensions are the hole measurements. Dayus grilles are undercut to fit inside the hole.

Friday Next Production means the order will ship not this Friday, but next Friday. Order must be placed before 1 pm PST Thursday.
