architectural & commercial / Bar Linear Grilles / Bar Linear
Made to Order
Architectural Grille / Bar Linear

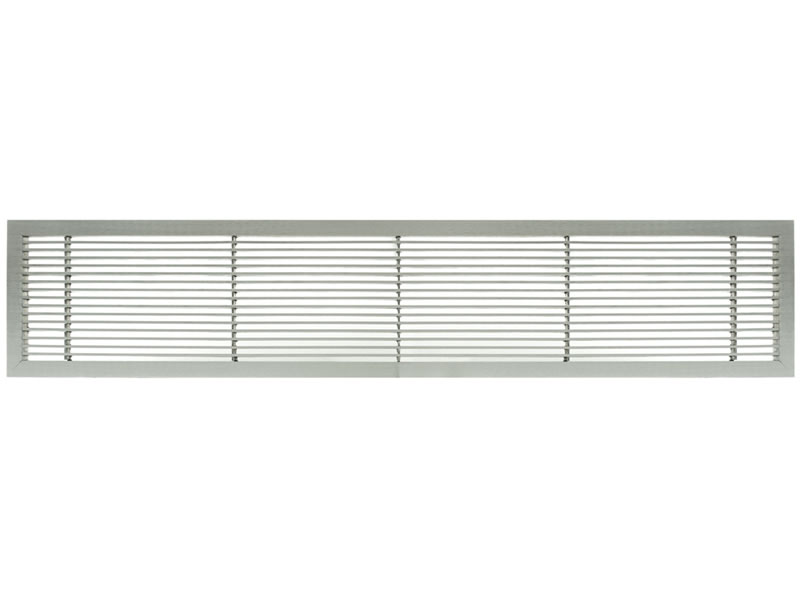

AG10 B Bar Linear Grilles In Brushed Satin

mill
bar linear
exhaust
sill
supply
wall
aluminum
rectangle

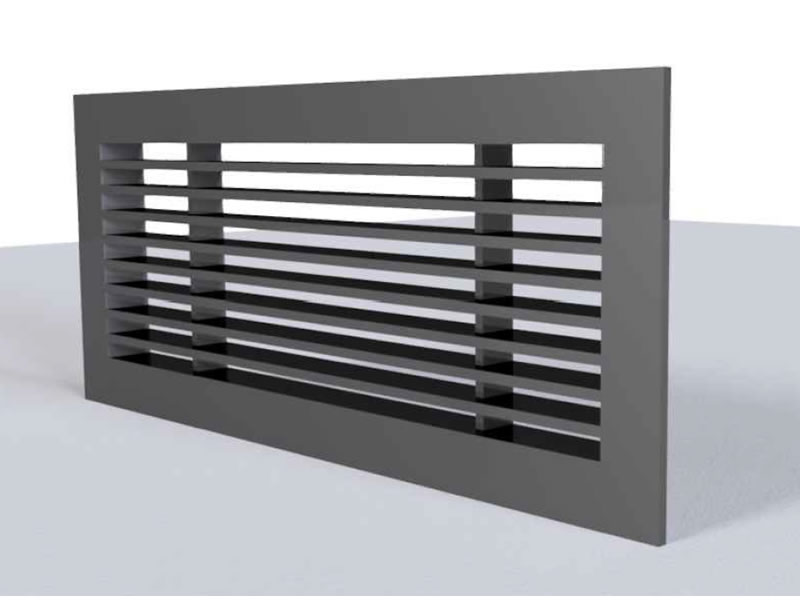

Fabricated with post-consumer 94% recycled aluminum with a brushed satin finish and available in a wide range of industry standard sizes, the AG10 B Frame Bar Grille is popular for new construction and renovations in residential or commercial properties.

  • BRUSHED SATIN finish
  • NO screw holes or screws

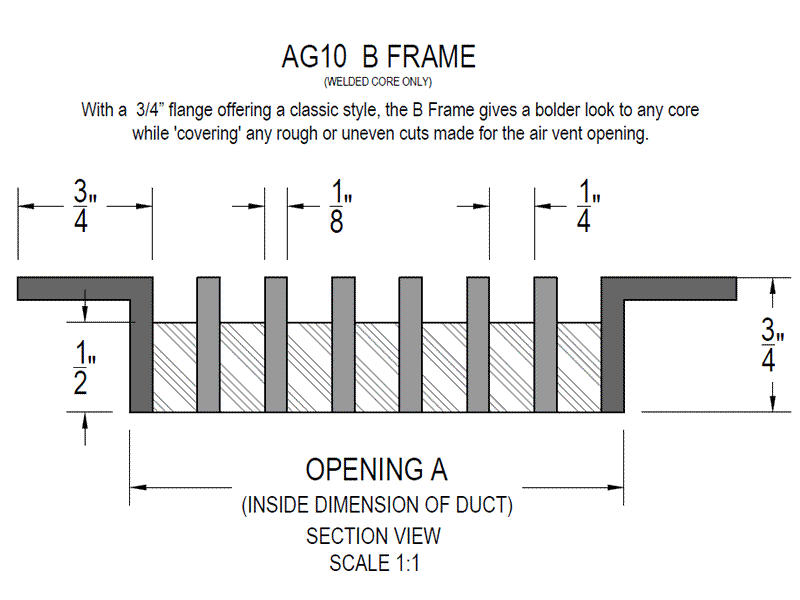

  • 3/4" flange
  • Aluminum construction
  • 0 Deg deflection blades
  • Weld-Lock constructed for maximum durability
  • Pencil Proof: 1/4 inch spacing between bars

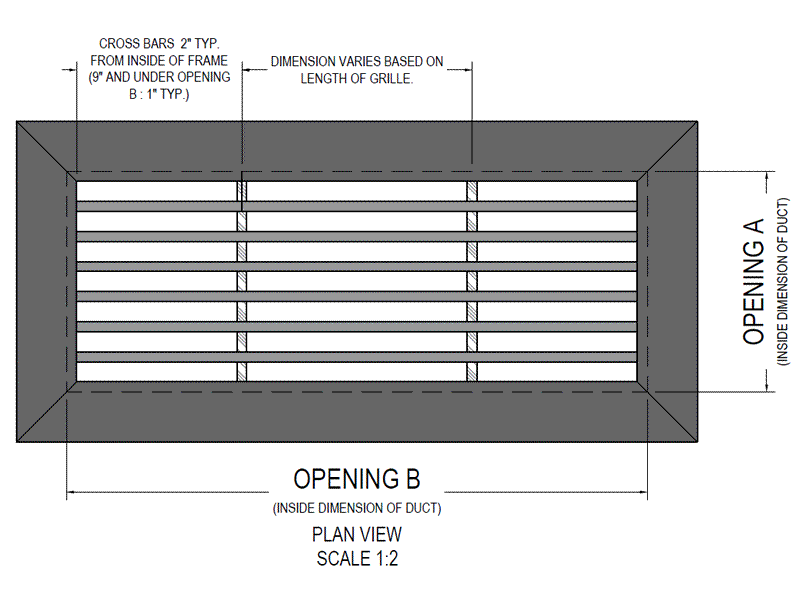

Sizes shown are the inside measurements of the grille that fits into the opening (without the flange). The actual opening should be 1/16" larger to ensure proper fit.  Don't see a size or option listed?  Call or email us.

NON-RETURNABLE. BUILT TO ORDER

UPS Shipping Zones ups zone map icon

ups shipping zone map
Order
Specs
Videos

Model Number

Description

Ships

Unit Price

Quantity

Subtotals

AG10B-2.25x8-BS Architectural Grille AG10 B frame bar grille. 2.25 in. x 8 in. (HxL). Brushed Satin finish. No screws. Sku 102250801. 3-4 Days $61.00
AG10B-2.25x10-BS Architectural Grille AG10 B frame bar grille. 2.25 in. x 10 in. (HxL). Brushed Satin finish. No screws. Sku 102251001. 3-4 Days $66.00
AG10B-2.25x12-BS Architectural Grille AG10 B frame bar grille. 2.25 in. x 12 in. (HxL). Brushed Satin finish. No screws. Sku 102251201. 3-4 Days $70.00
AG10B-2.25x14-BS Architectural Grille AG10 B frame bar grille. 2.25 in. x 14 in. (HxL). Brushed Satin finish. No screws. Sku 102251401. 3-4 Days $76.00
AG10B-4x8-BS Architectural Grille AG10 B frame bar grille. 4 in. x 8 in. (HxL). Brushed Satin finish. No screws. Sku 100040801. 3-4 Days $69.00
AG10B-4x10-BS Architectural Grille AG10 B frame bar grille. 4 in. x 10 in. (HxL). Brushed Satin finish. No screws. Sku 100041001. 3-4 Days $72.00
AG10B-4x12-BS Architectural Grille AG10 B frame bar grille. 4 in. x 12 in. (HxL). Brushed Satin finish. No screws. Sku 100041201. 3-4 Days $82.00
AG10B-4x14-BS Architectural Grille AG10 B frame bar grille. 4 in. x 14 in. (HxL). Brushed Satin finish. No screws. Sku 100041401. 3-4 Days $89.00
AG10B-4x24-BS Architectural Grille AG10 B frame bar grille. 4 in. x 24 in. (HxL). Brushed Satin finish. No screws. Sku 100042401. 3-4 Days $133.00

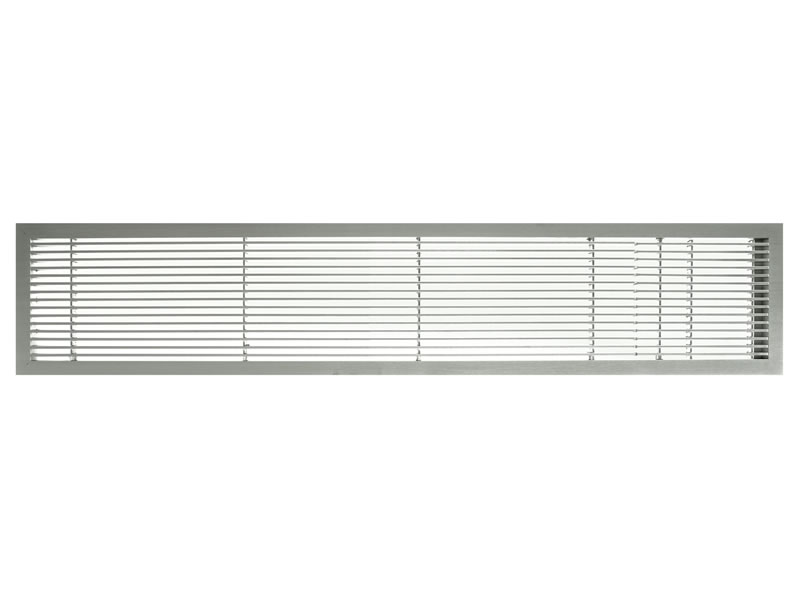

AG10B-4x24-BS-D Architectural Grille AG10 B frame bar grille. 4 in. x 24 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100042411. 3-4 Days $223.00
AG10B-4x30-BS Architectural Grille AG10 B frame bar grille. 4 in. x 30 in. (HxL). Brushed Satin finish. No screws. Sku 100043001. 3-4 Days $160.00
AG10B-4x30-BS-D Architectural Grille AG10 B frame bar grille. 4 in. x 30 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100043011. 3-4 Days $250.00
AG10B-4x36-BS Architectural Grille AG10 B frame bar grille. 4 in. x 36 in. (HxL). Brushed Satin finish. No screws. Sku 100043601. 3-4 Days $186.00
AG10B-4x36-BS-D Architectural Grille AG10 B frame bar grille. 4 in. x 36 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100043611. 3-4 Days $276.00
AG10B-4x42-BS Architectural Grille AG10 B frame bar grille. 4 in. x 42 in. (HxL). Brushed Satin finish. No screws. Sku 100044201. 3-4 Days $214.00
AG10B-4x42-BS-D Architectural Grille AG10 B frame bar grille. 4 in. x 42 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100044211. 3-4 Days $304.00
AG10B-4x48-BS Architectural Grille AG10 B frame bar grille. 4 in. x 48 in. (HxL). Brushed Satin finish. No screws. Sku 100044801. 3-4 Days $242.00
AG10B-4x48-BS-D Architectural Grille AG10 B frame bar grille. 4 in. x 48 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100044811. 3-4 Days $332.00
AG10B-6x8-BS Architectural Grille AG10 B frame bar grille. 6 in. x 8 in. (HxL). Brushed Satin finish. No screws. Sku 100060801. 3-4 Days $72.00
AG10B-6x10-BS Architectural Grille AG10 B frame bar grille. 6 in. x 10 in. (HxL). Brushed Satin finish. No screws. Sku 100061001. 3-4 Days $76.00
AG10B-6x12-BS Architectural Grille AG10 B frame bar grille. 6 in. x 12 in. (HxL). Brushed Satin finish. No screws. Sku 100061201. 3-4 Days $85.00
AG10B-6x14-BS Architectural Grille AG10 B frame bar grille. 6 in. x 14 in. (HxL). Brushed Satin finish. No screws. Sku 100061401. 3-4 Days $92.00
AG10B-6x24-BS Architectural Grille AG10 B frame bar grille. 6 in. x 24 in. (HxL). Brushed Satin finish. No screws. Sku 100062401. 3-4 Days $151.00
AG10B-6x24-BS-D Architectural Grille AG10 B frame bar grille. 6 in. x 24 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100062411. 3-4 Days $241.00
AG10B-6x30-BS Architectural Grille AG10 B frame bar grille. 6 in. x 30 in. (HxL). Brushed Satin finish. No screws. Sku 100063001. 3-4 Days $177.00
AG10B-6x30-BS-D Architectural Grille AG10 B frame bar grille. 6 in. x 30 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100063011. 3-4 Days $267.00
AG10B-6x36-BS Architectural Grille AG10 B frame bar grille. 6 in. x 36 in. (HxL). Brushed Satin finish. No screws. Sku 100063601. 3-4 Days $205.00
AG10B-6x36-BS-D Architectural Grille AG10 B frame bar grille. 6 in. x 36 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100063611. 3-4 Days $295.00
AG10B-6x42-BS Architectural Grille AG10 B frame bar grille. 6 in. x 42 in. (HxL). Brushed Satin finish. No screws. Sku 100064201. 3-4 Days $231.00
AG10B-6x42-BS-D Architectural Grille AG10 B frame bar grille. 6 in. x 42 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100064211. 3-4 Days $321.00
AG10B-6x48-BS Architectural Grille AG10 B frame bar grille. 6 in. x 48 in. (HxL). Brushed Satin finish. No screws. Sku 100064801. 3-4 Days $258.00
AG10B-6x48-BS-D Architectural Grille AG10 B frame bar grille. 6 in. x 48 in. (HxL). Brushed Satin finish WITH DOOR. No screws. Sku 100064811. 3-4 Days $348.00
AG10B-8x8-BS Architectural Grille AG10 B frame bar grille. 8 in. x 8 in. (HxL). Brushed Satin finish. No screws. Sku 100080801. 3-4 Days $75.00
AG10B-8x10-BS Architectural Grille AG10 B frame bar grille. 8 in. x 10 in. (HxL). Brushed Satin finish. No screws. Sku 100081001. 3-4 Days $83.00
AG10B-8x12-BS Architectural Grille AG10 B frame bar grille. 8 in. x 12 in. (HxL). Brushed Satin finish. No screws. Sku 100081201. 3-4 Days $90.00
AG10B-8x14-BS Architectural Grille AG10 B frame bar grille. 8 in. x 14 in. (HxL). Brushed Satin finish. No screws. Sku 100081401. 3-4 Days $97.00
AG10B-10x10-BS Architectural Grille AG10 B frame bar grille. 10 in. x 10 in. (HxL). Brushed Satin finish. No screws. Sku 100101001. 3-4 Days $97.00
AG10B-10x12-BS Architectural Grille AG10 B frame bar grille. 10 in. x 12 in. (HxL). Brushed Satin finish. No screws. Sku 100101201. 3-4 Days $104.00
AG10B-10x14-BS Architectural Grille AG10 B frame bar grille. 10 in. x 14 in. (HxL). Brushed Satin finish. No screws. Sku 100101401. 3-4 Days $112.00
AG10B-12x12-BS Architectural Grille AG10 B frame bar grille. 12 in. x 12 in. (HxL). Brushed Satin finish. No screws. Sku 100121201. 3-4 Days $115.00
AG10B-12x14-BS Architectural Grille AG10 B frame bar grille. 12 in. x 14 in. (HxL). Brushed Satin finish. No screws. Sku 100121401. 3-4 Days $121.00
Add to cart

ArchGrille AG10B Catalog

AG10B Grille Catalog

ArchGrille AG10 Full Catalog

AG10 Full Catalog

ArchGrille Measurement Guidelines

How to Measure
